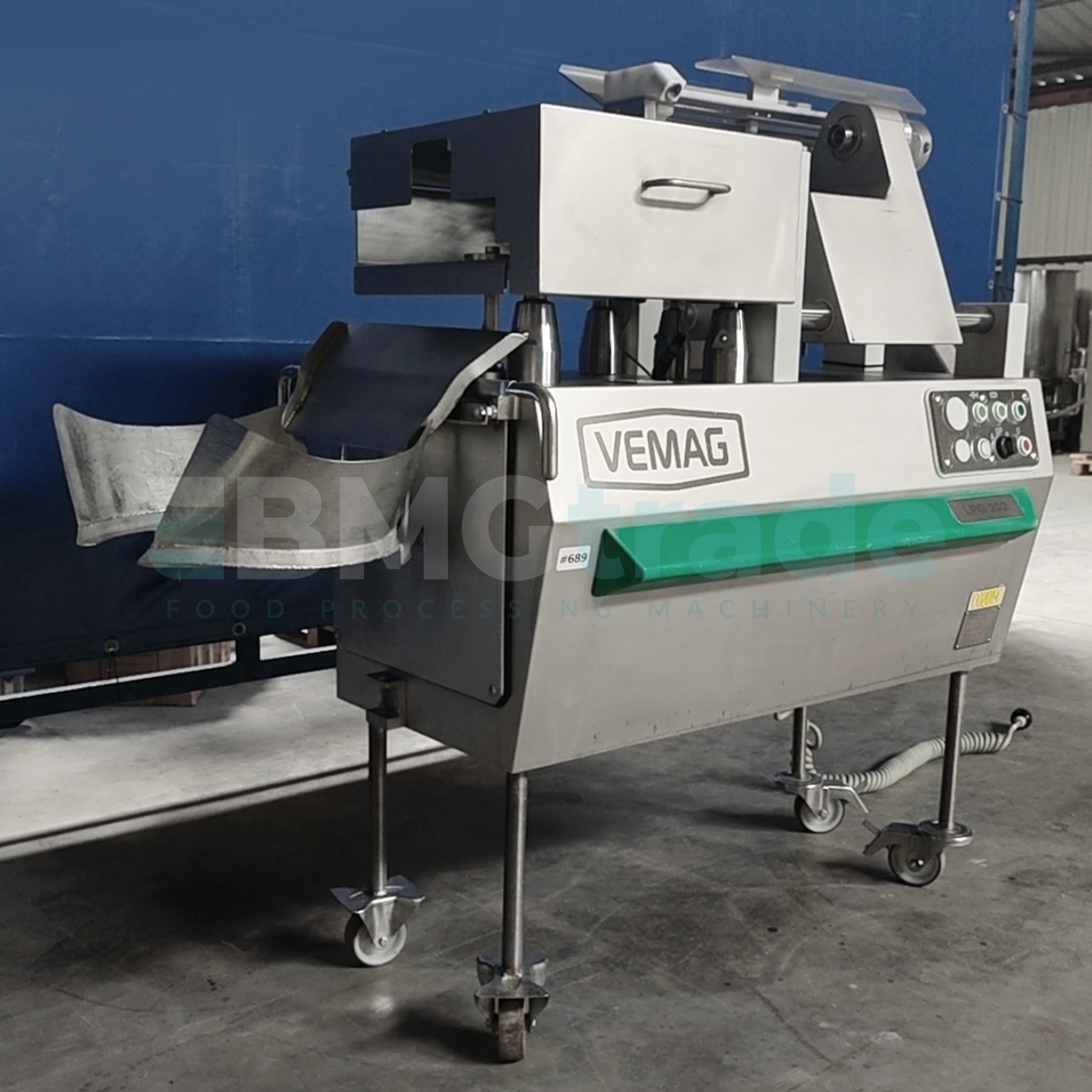

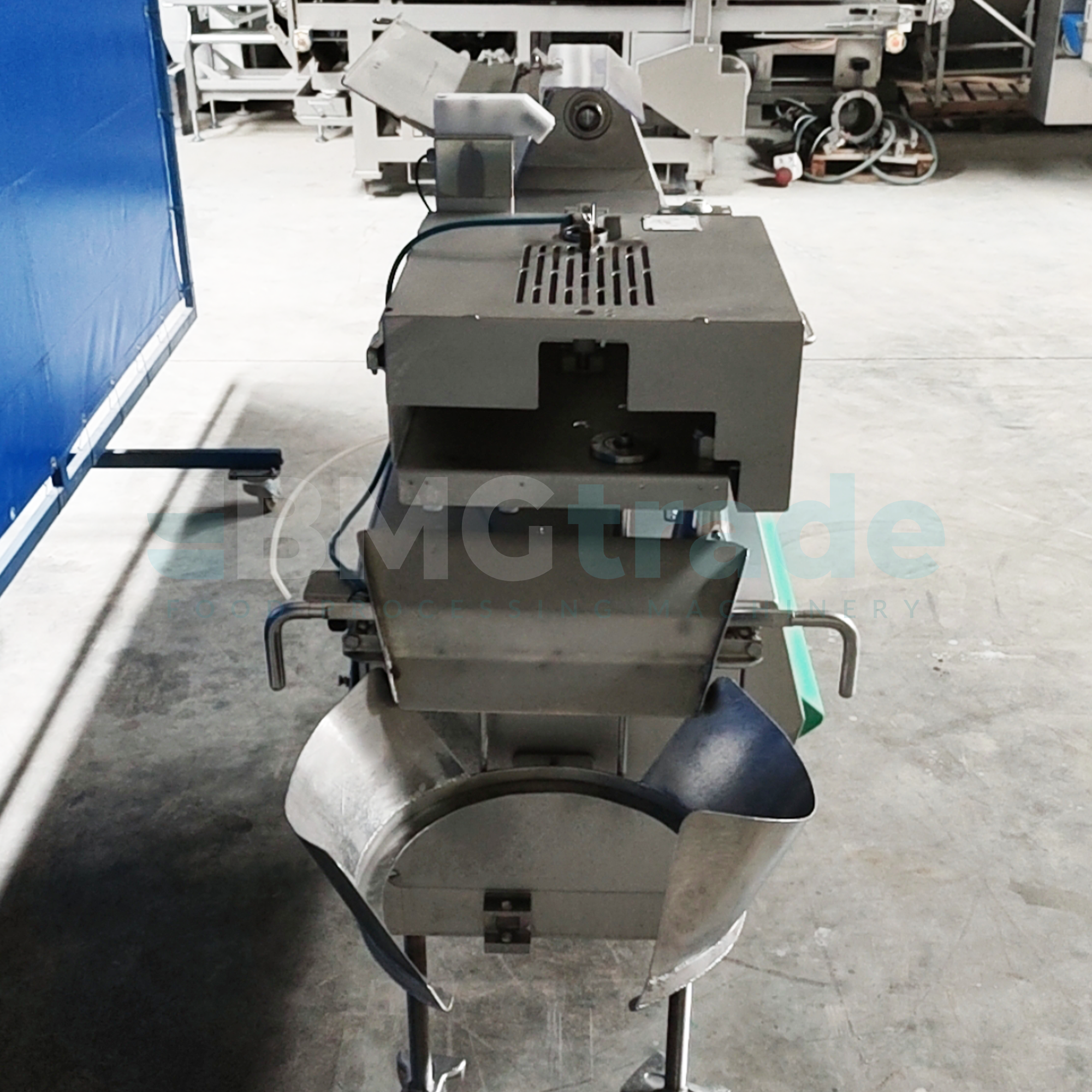

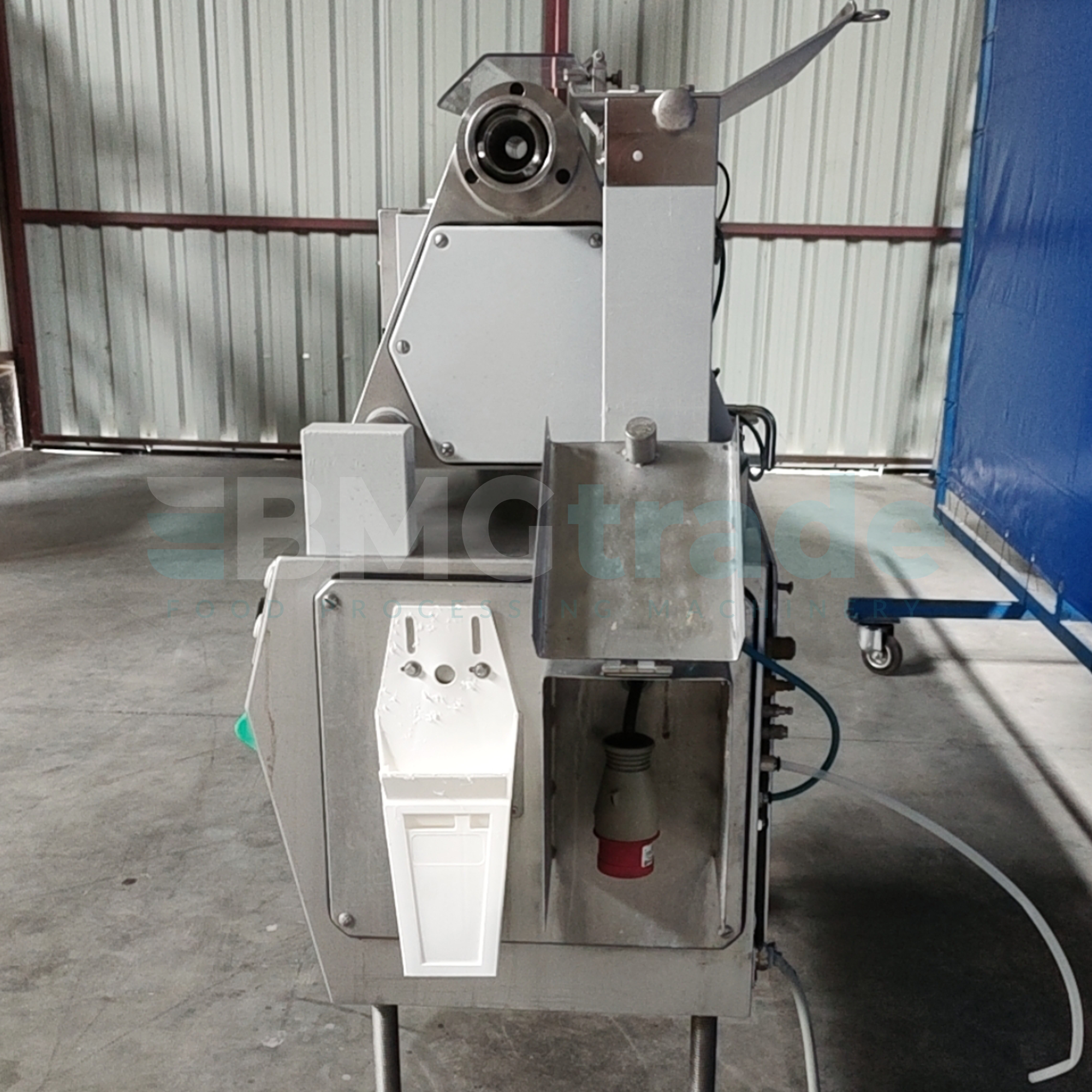

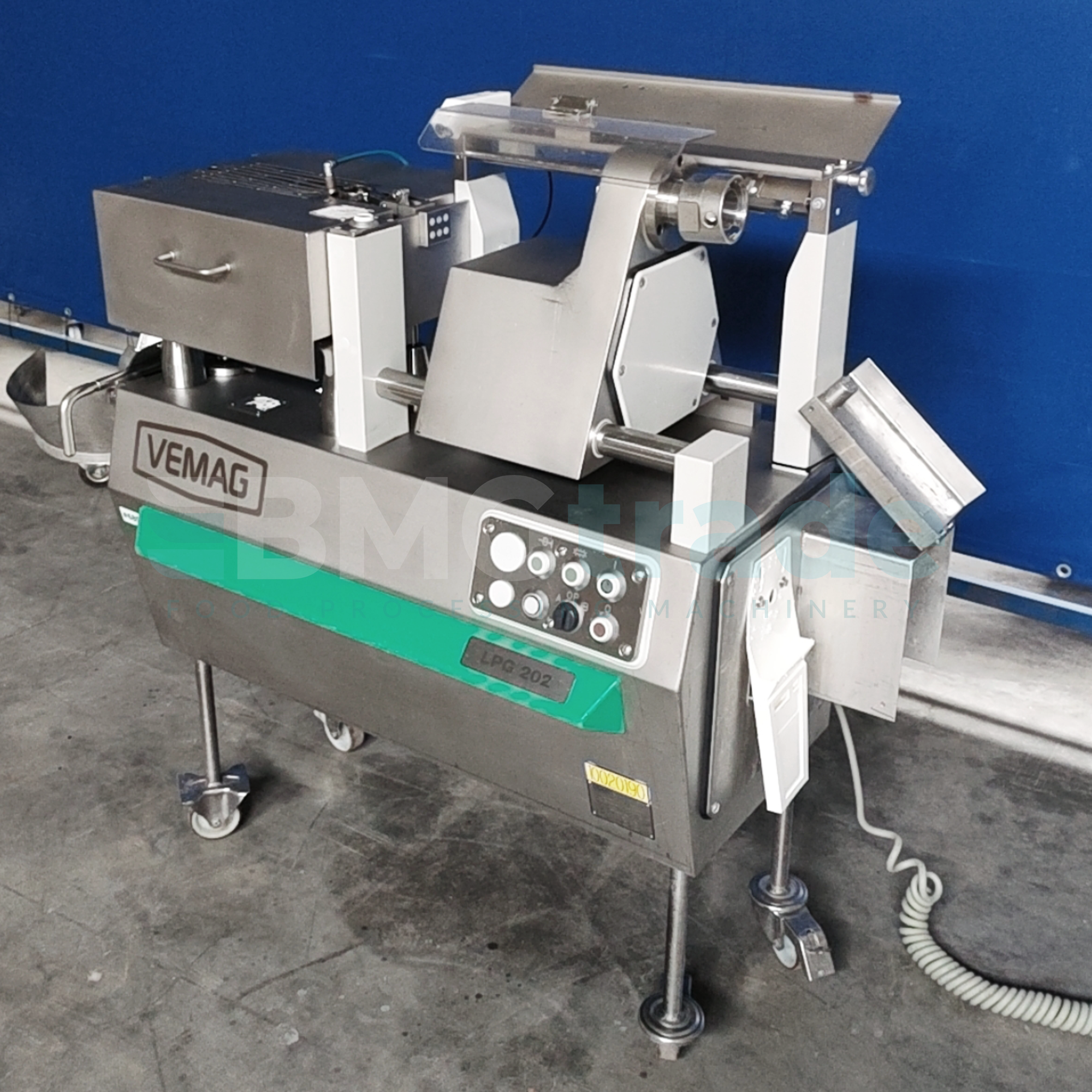

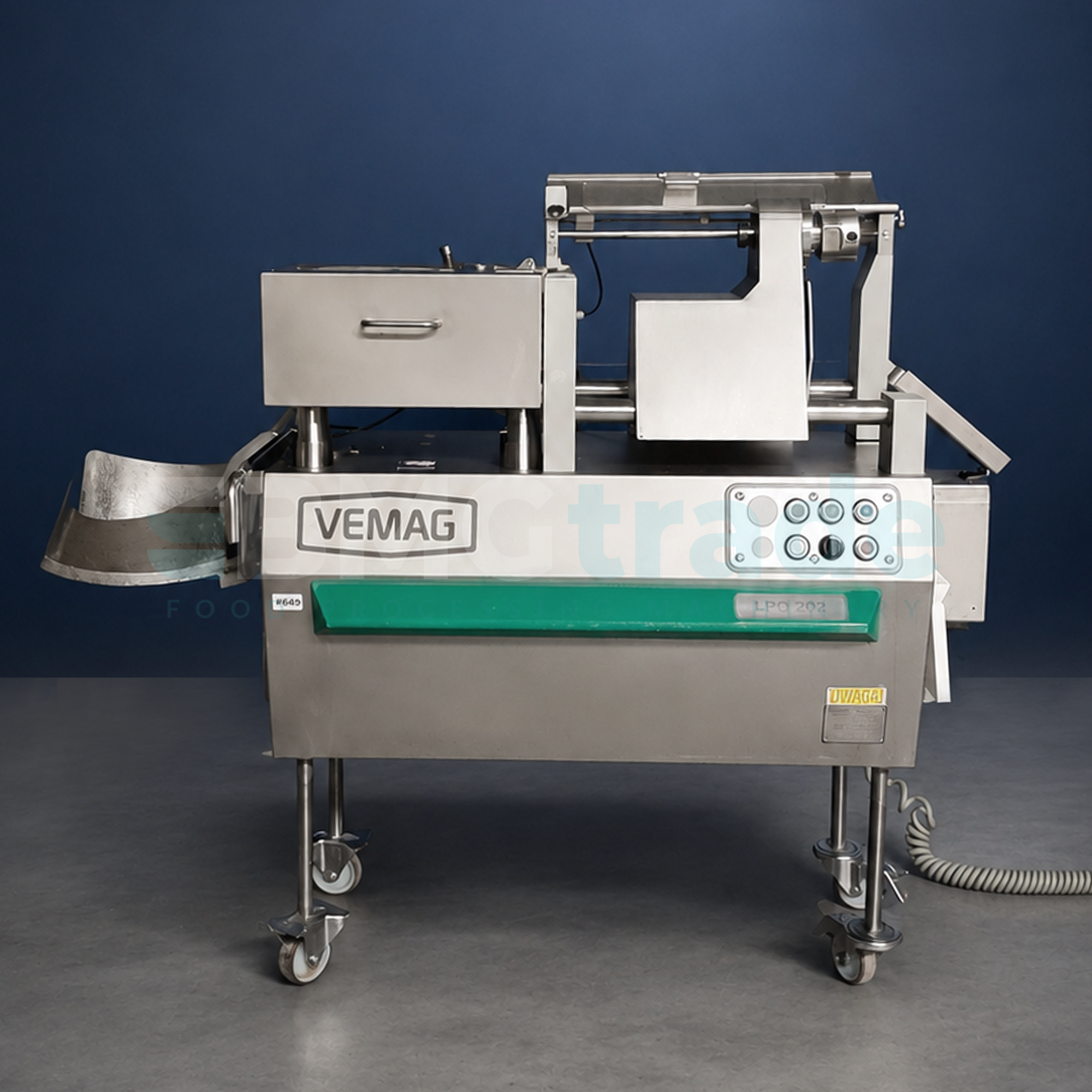

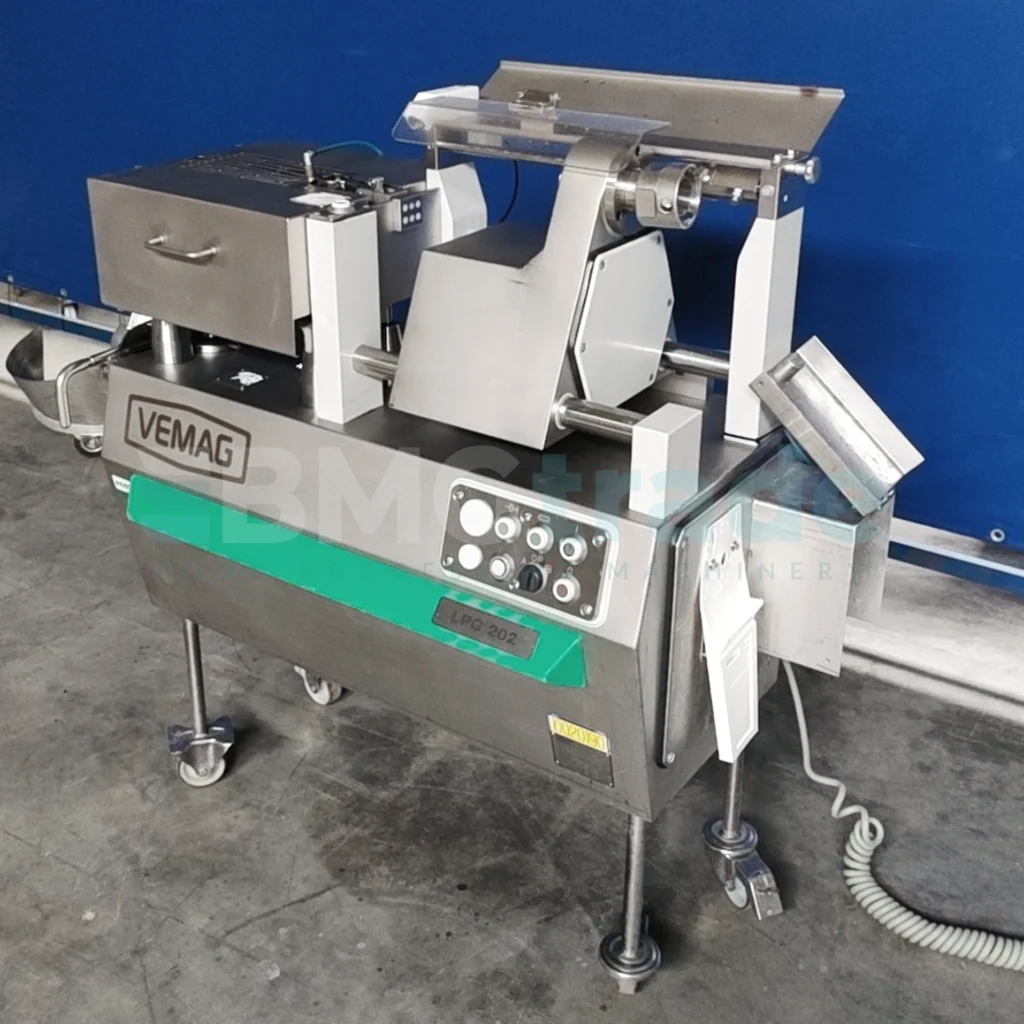

VEMAG LPG 202
Automatic Length Portioning Device for Sausages
The VEMAG LPG 202 Sausage Portioner Linker is an automatic length portioning device from manufacturer VEMAG Maschinenbau GmbH, designed to portion sausages by length through precise twisting of the casing into links of identical length and weight. The unit works together with VEMAG vacuum filling machines from the Robby/Robby II and Robot HP/DP series, forming a complete sausage production station.
How does the VEMAG LPG 202 Sausage Portioner Linker work?

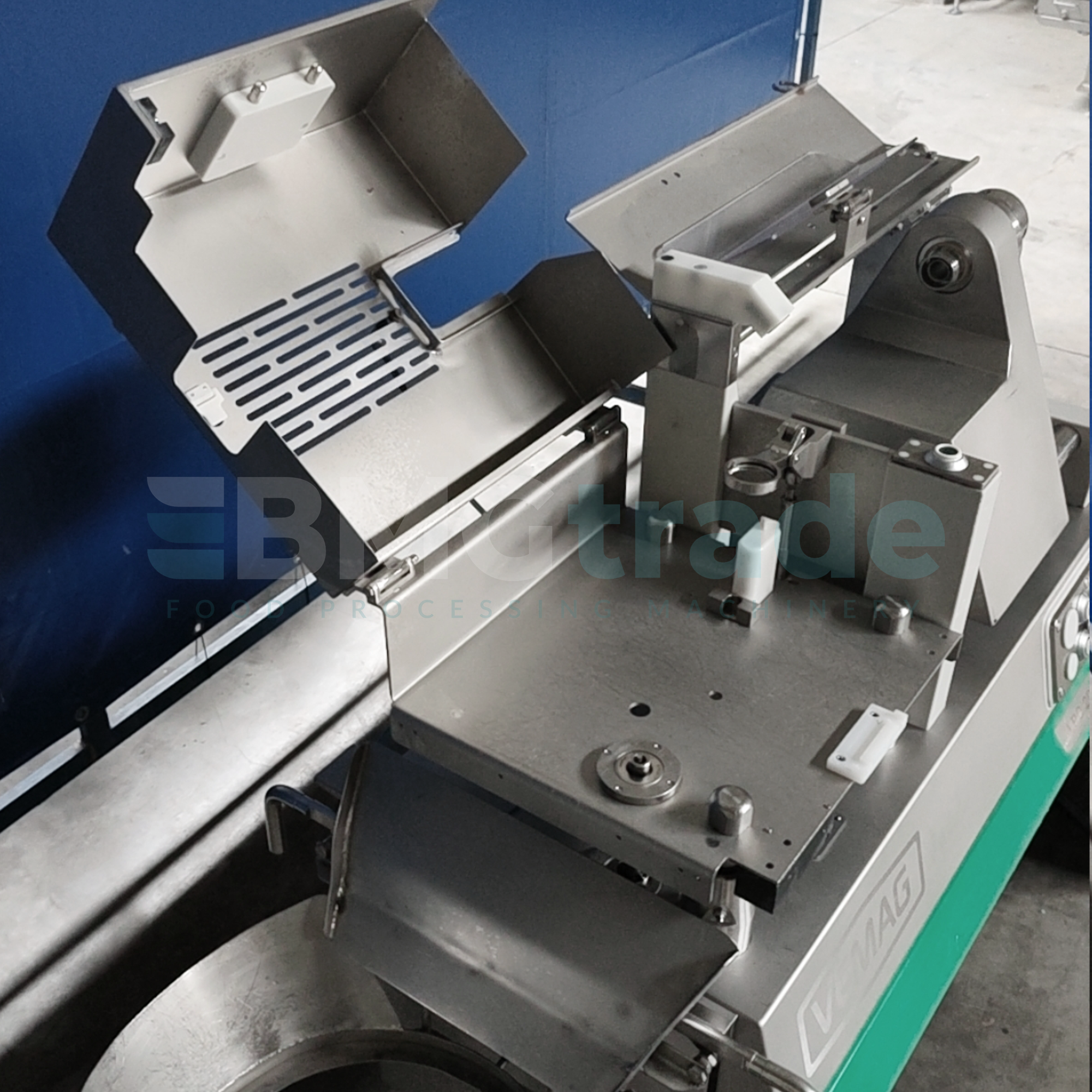

Casing filled with meat mass, fed from the vacuum filler, passes through the LPG 202’s twisting unit, which divides it into links of repeatable length and weight through precise twisting at set points. The unit handles casing calibres from 14 to 40 mm and works with both natural and artificial casings — collagen and cellulose — allowing flexible use across the production of raw, fresh, and cooked sausages.
The unit’s pneumatic drive is powered by compressed air at 6 bar, with an air consumption of around 41 l/min, ensuring smooth and repeatable operation of the twisting unit at a high cycle frequency.
Key advantages of the VEMAG LPG 202 Sausage Portioner Linker
The VEMAG LPG 202 reaches an output of up to 1,500 portions per minute, depending on portion length and casing type, making it a suitable solution for plants with high-volume sausage production. Repeatable link length and weight translate into a uniform finished product and reduce raw material losses.
Compatibility with a wide range of casing calibres (14 – 40 mm) and various casing materials provides flexibility when switching between sausage products. Its stainless steel construction meets the high hygiene standards required of equipment working in direct contact with food.
Technical specifications of the VEMAG LPG 202 Sausage Portioner Linker
- Manufacturer: VEMAG Maschinenbau GmbH, D-27283 Verden (Aller)
- Model: LPG 202
- Machine number: 202 0343
- Year of manufacture: 2007
- Power supply: 220–240 V / 400–460 V / 575 V, 3-phase, 50/60 Hz
- Rated current: 10 A (220–240 V) / 5 A (400–460 V)
- Power: 2.5 kW
- Compressed air supply: 6 bar
- Air consumption: 41 l/min
- Electrical diagram: 202 890 012
- Casing calibre: 14 – 40 mm
- Casing types: natural, collagen, cellulose
- Output: up to 1,500 portions/min
- Compatible fillers: VEMAG Robby / Robby II, Robot HP, Robot DP
- Construction material: stainless steel
Application of the VEMAG LPG 202 Sausage Portioner Linker
The VEMAG LPG 202 Sausage Portioner Linker is used in meat processing plants producing raw, fresh, and cooked sausages, wherever precise, repeatable length portioning of the product is required. The unit performs well as part of a sausage production line, working directly with a vacuum filler, replacing manual casing twisting and speeding up the production process.
VEMAG LPG 202 Sausage Portioner Linker available at BMG Trade
At BMG Trade, we specialize in trading machinery for the food industry, including proven sausage portioning and linking equipment from renowned brands such as VEMAG. The VEMAG LPG 202 Sausage Portioner Linker we offer, manufactured in 2007, is a solid stainless steel unit ready to work with a vacuum filler on a production line. Contact us to find out about current availability and pricing for the VEMAG LPG 202 Sausage Portioner Linker.
