FORMAX F-6
Designed for producing burgers, patties

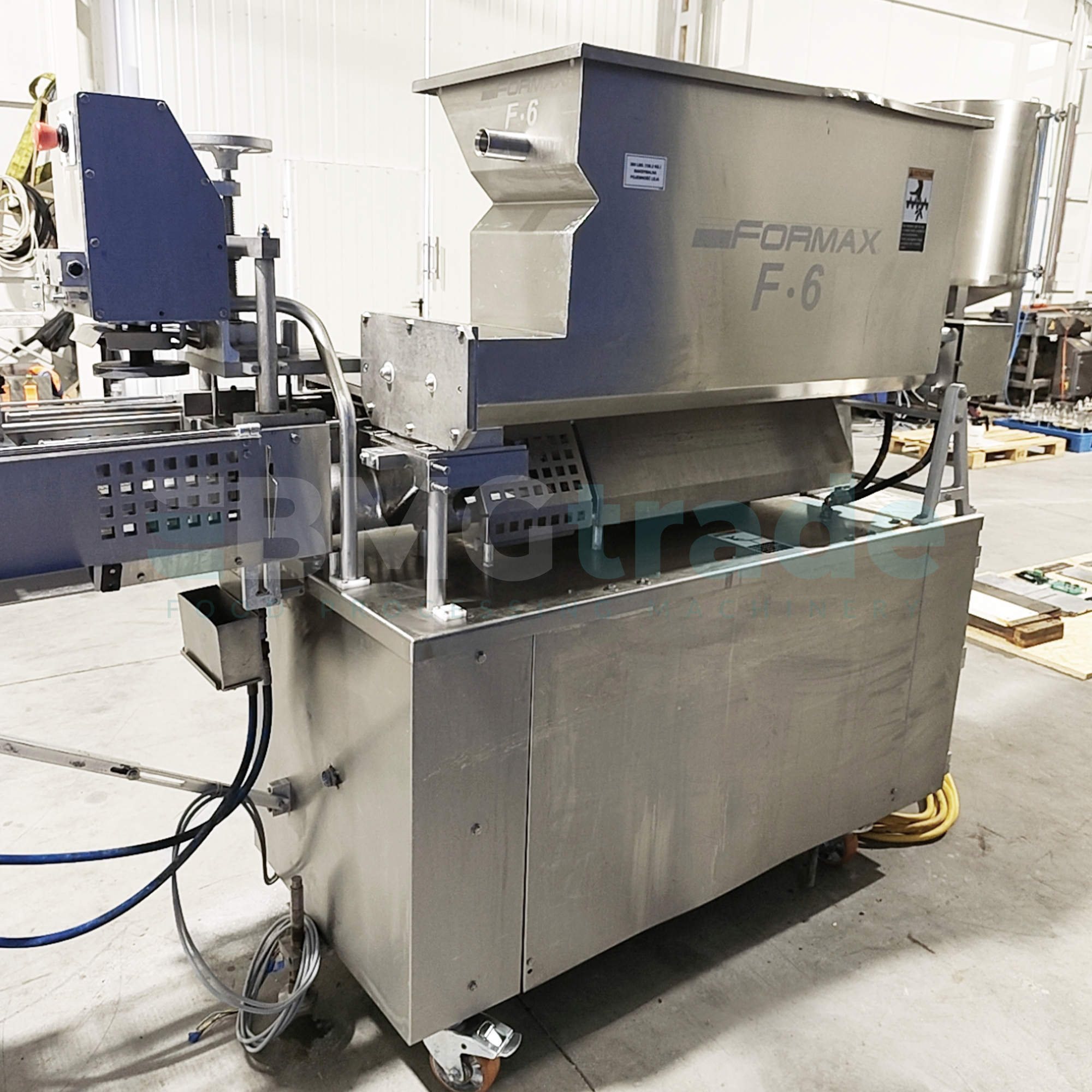

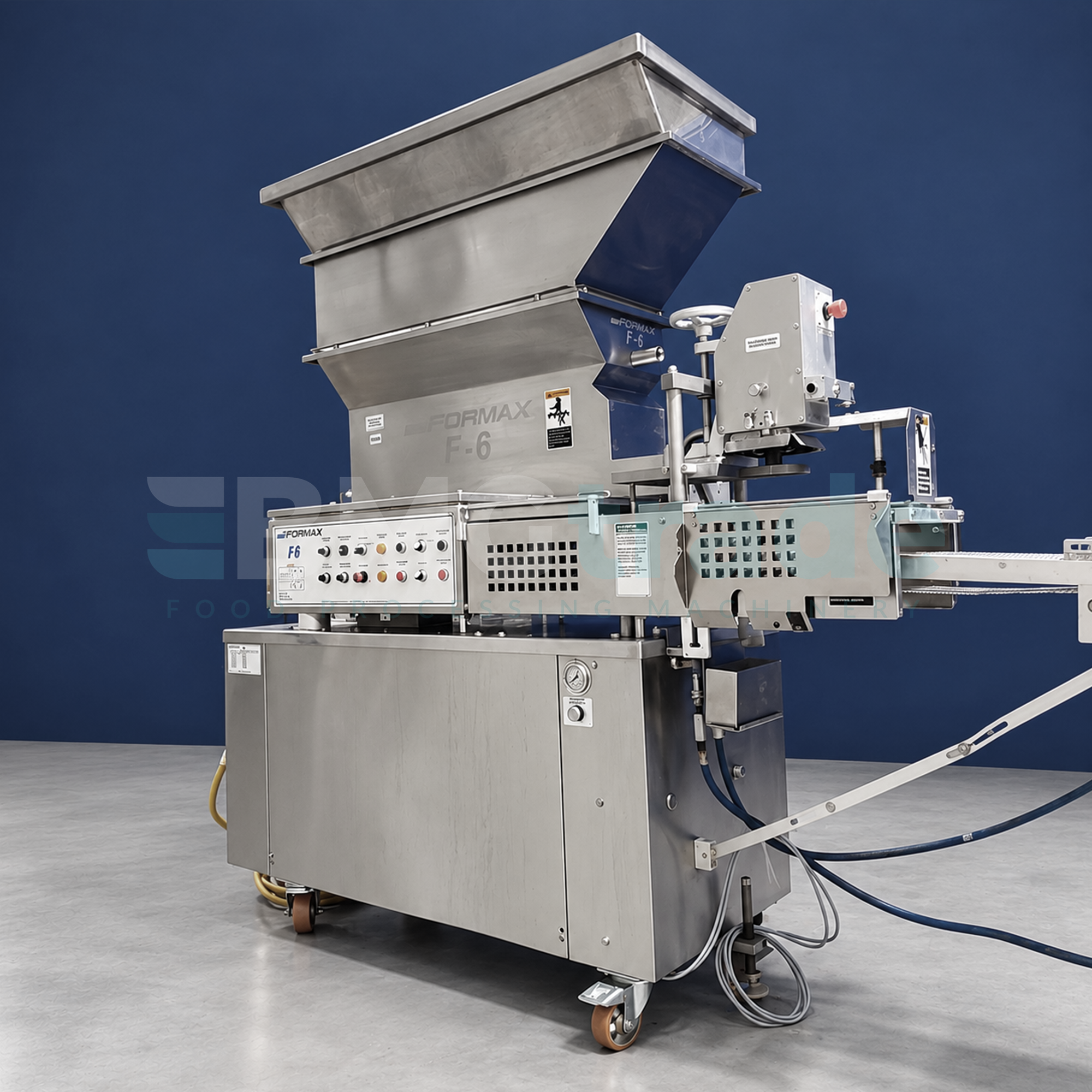

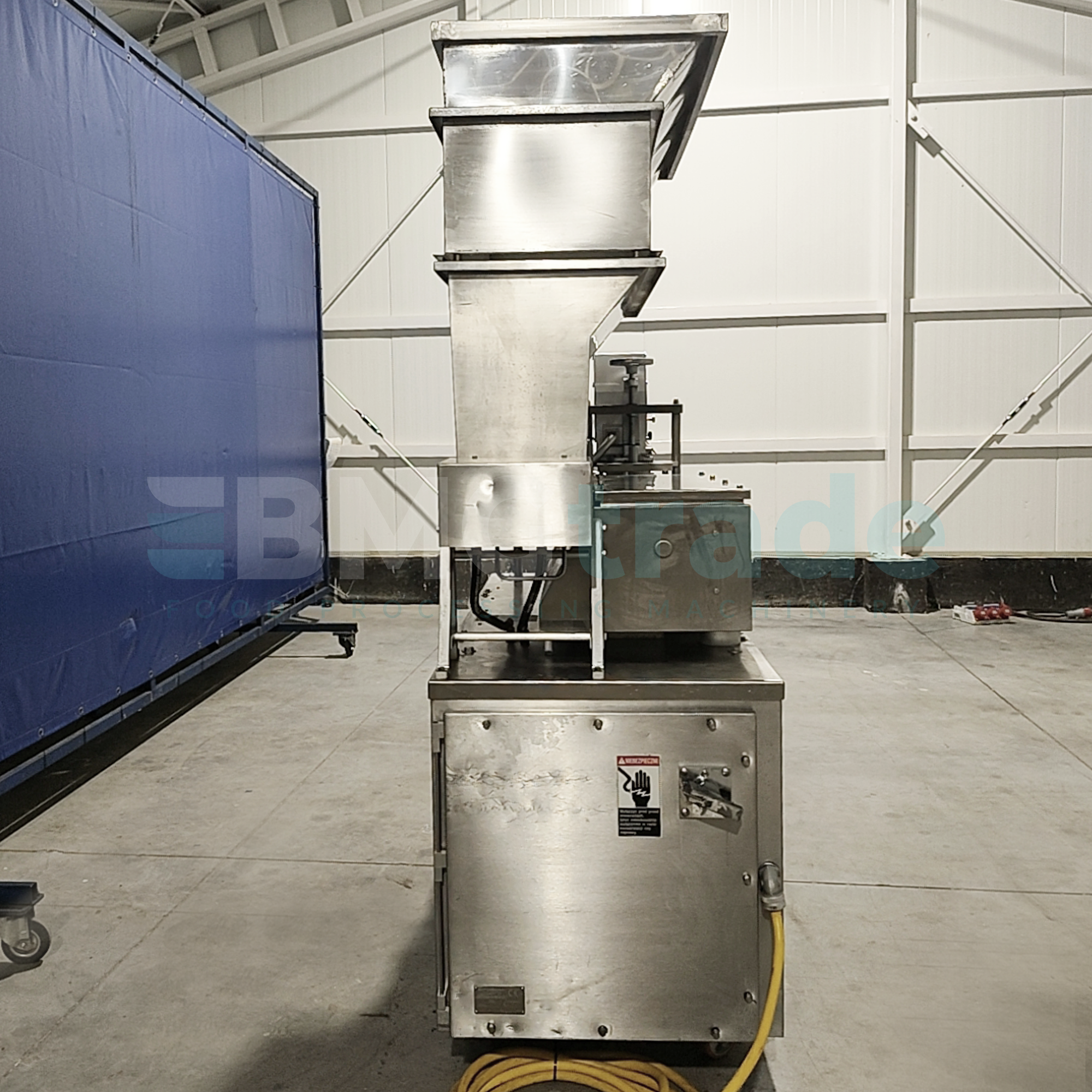

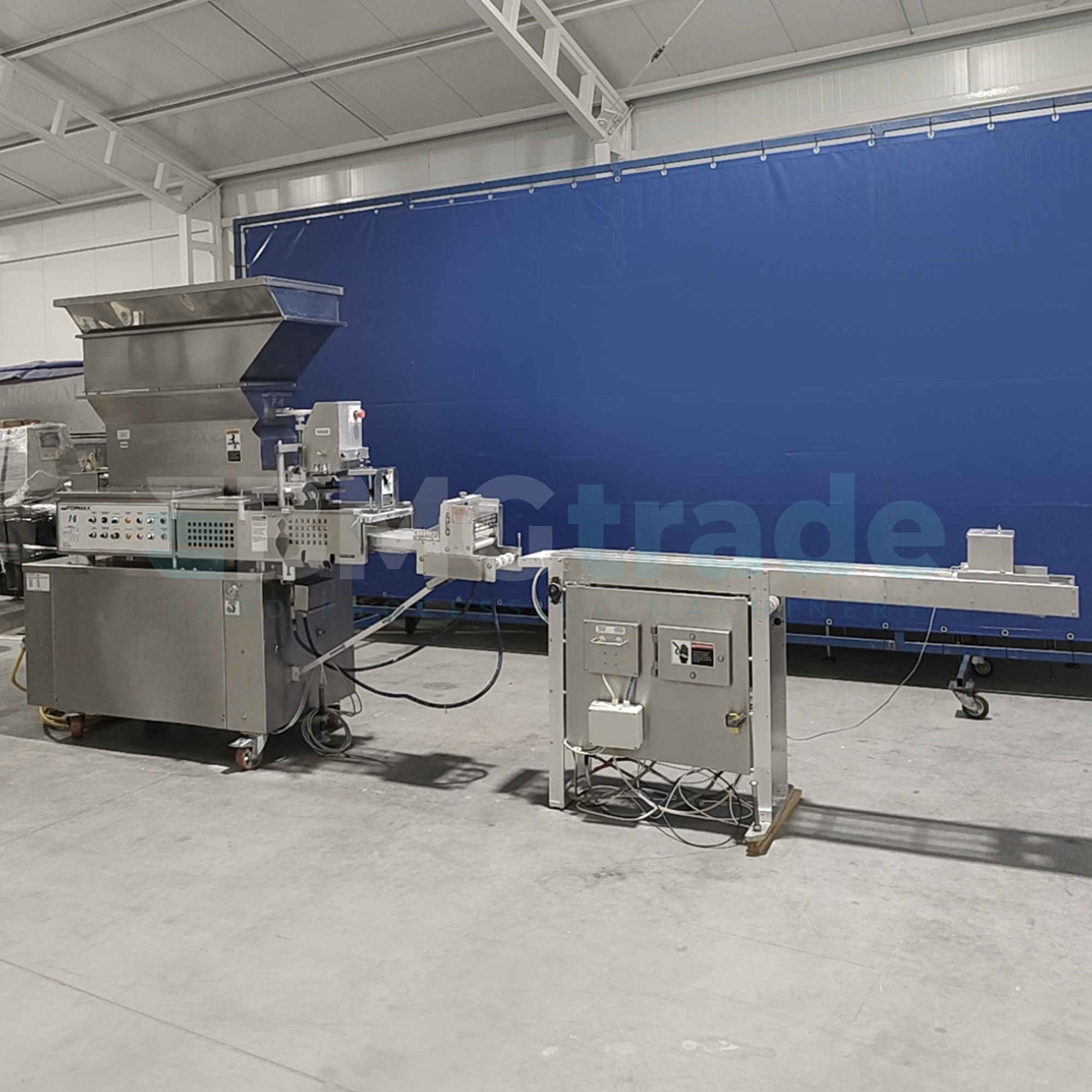

The FORMAX F-6 burger forming machine is an automatic forming machine from the FORMAX brand (Provisur Technologies), designed for producing burgers, patties, and other formed products from meat, poultry, and non-meat ingredients. The set consists of the forming machine and a conveyor that receives the finished products, and includes a wide selection of round and oval molds from 45 to 200 g as well as spare parts.
How does the FORMAX F-6 burger forming machine work?

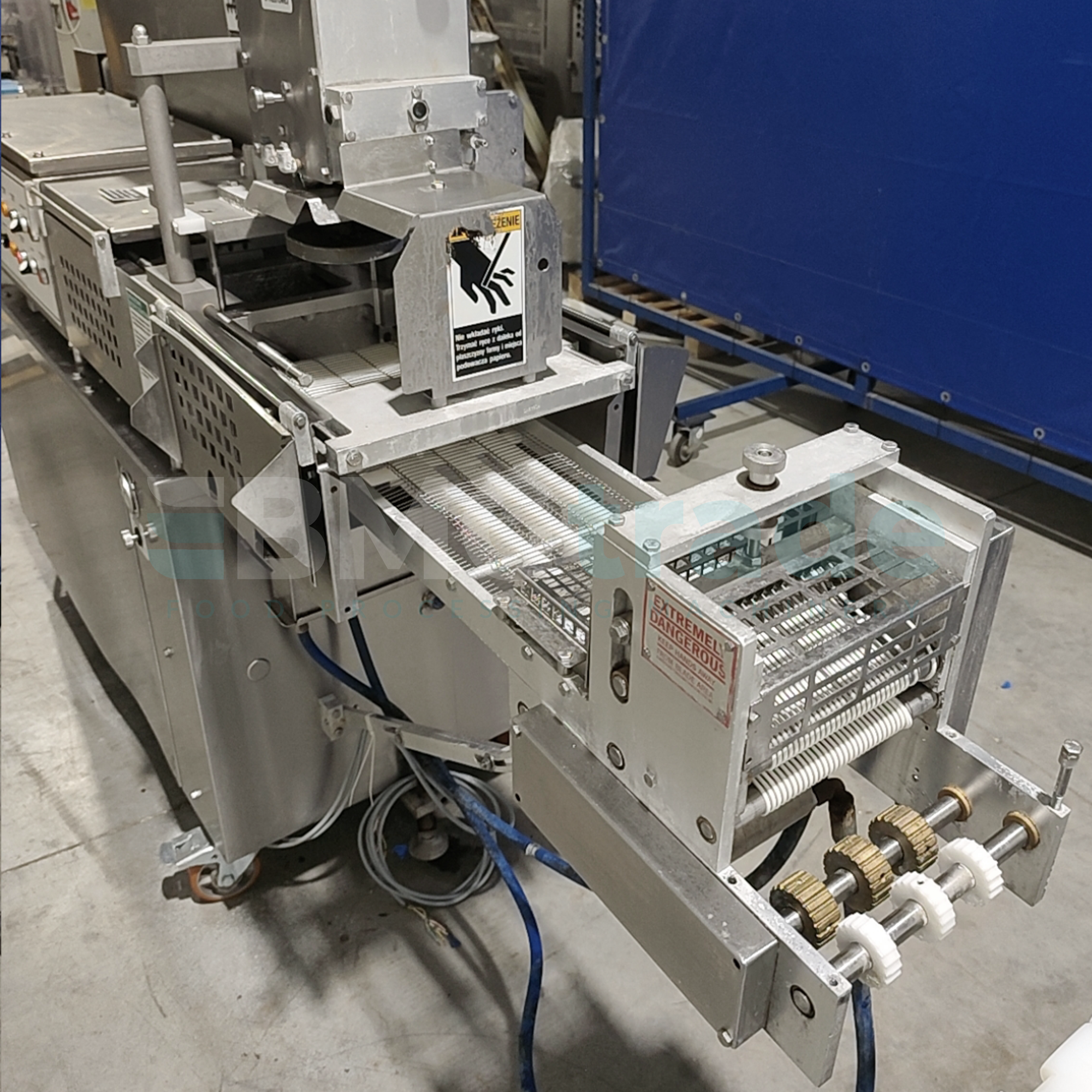

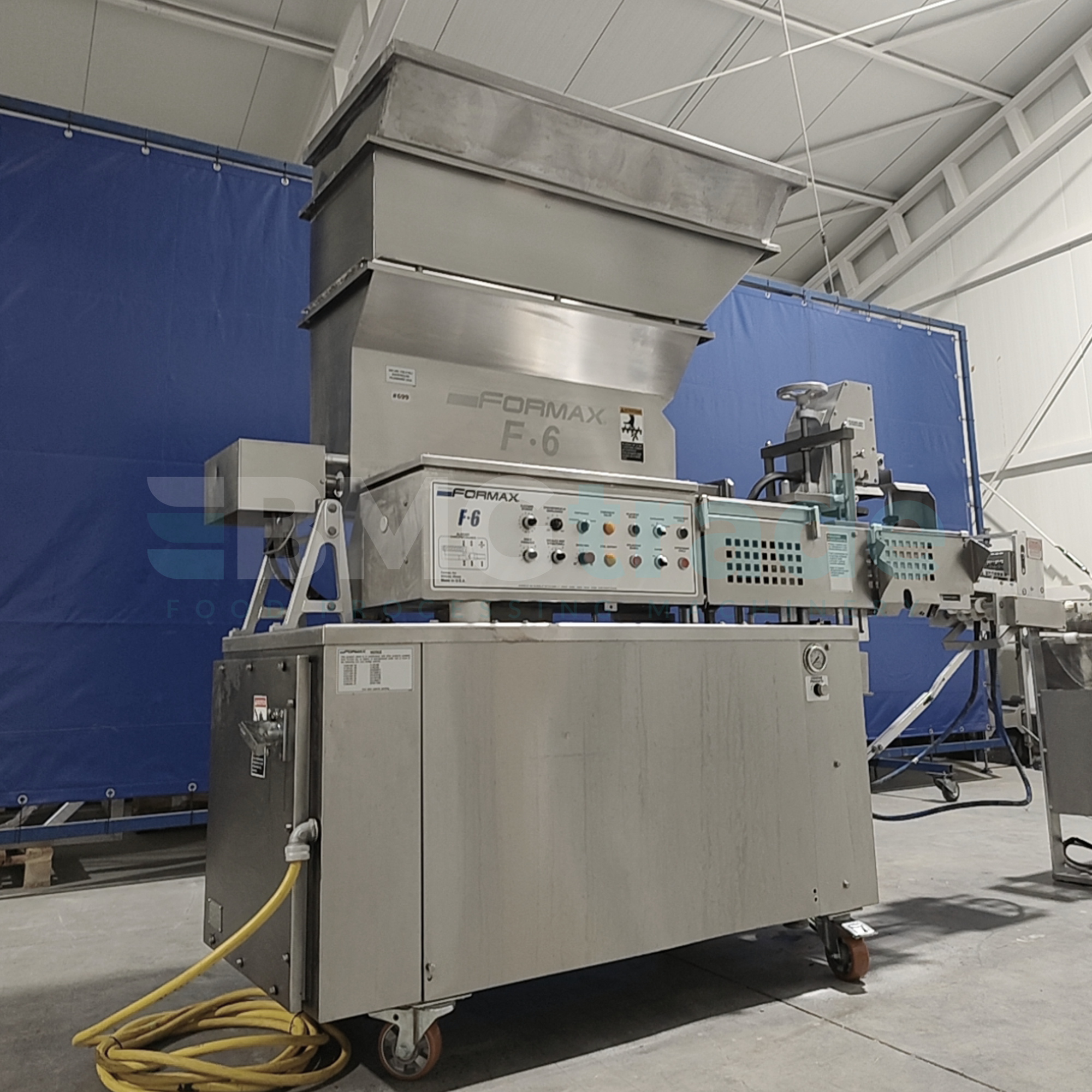

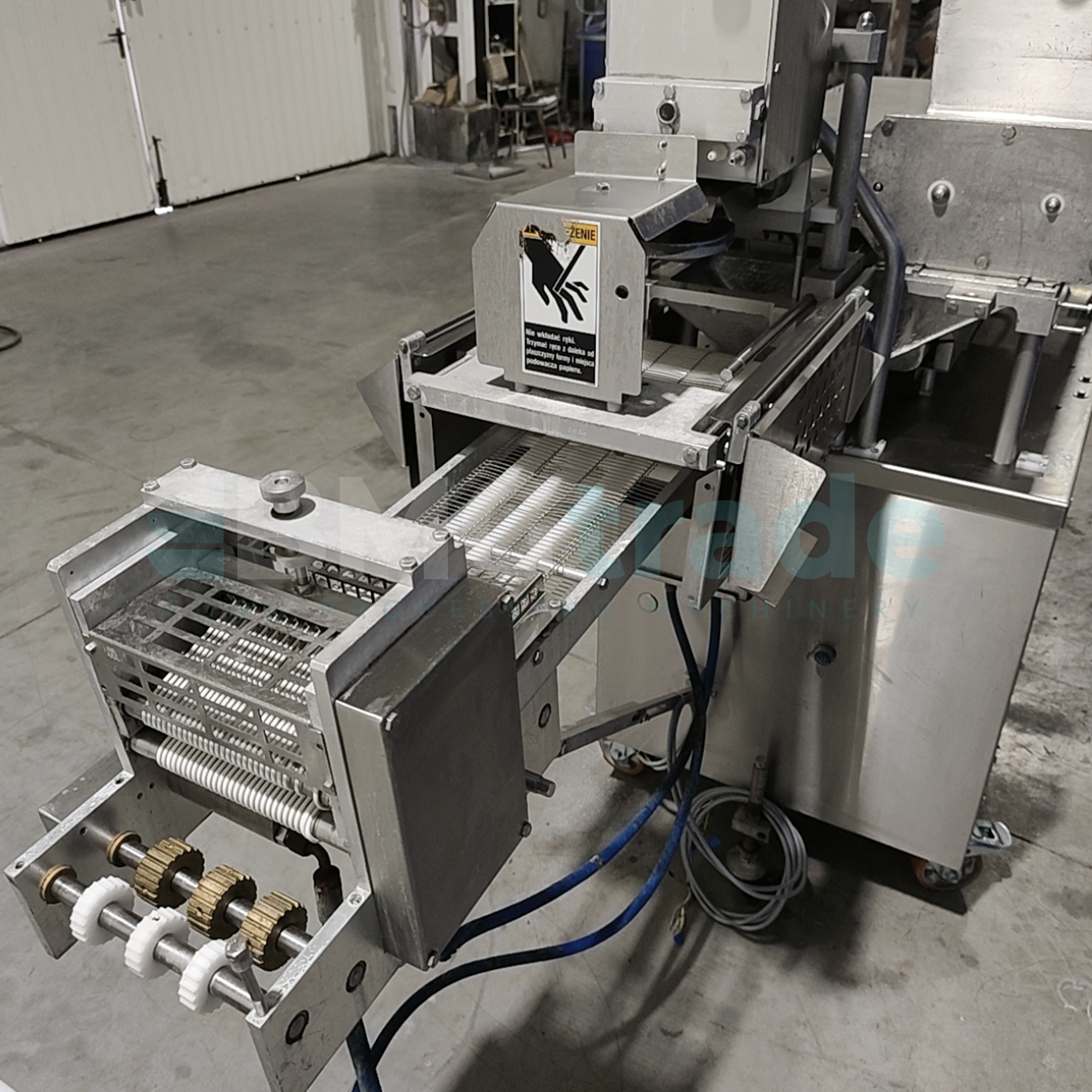

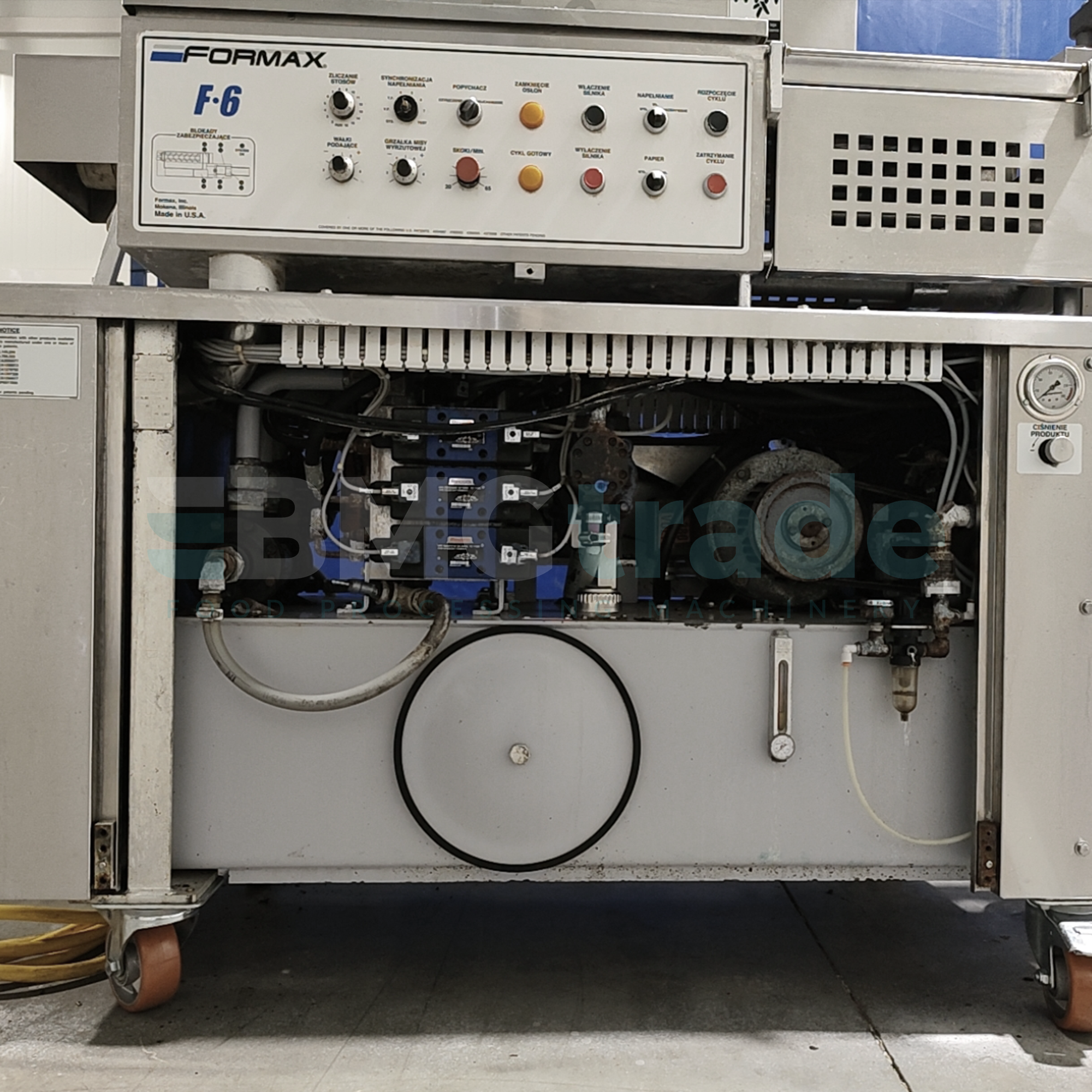

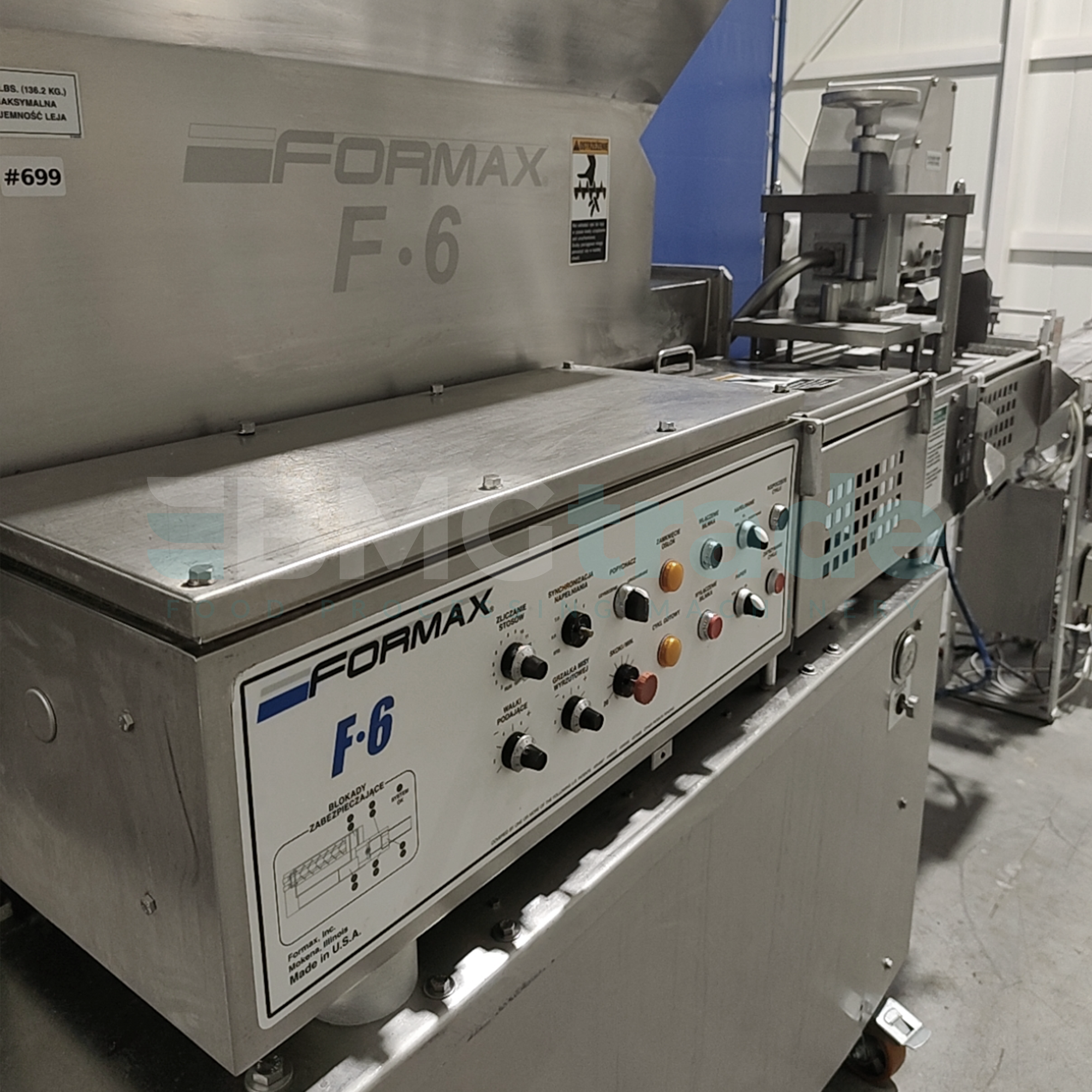

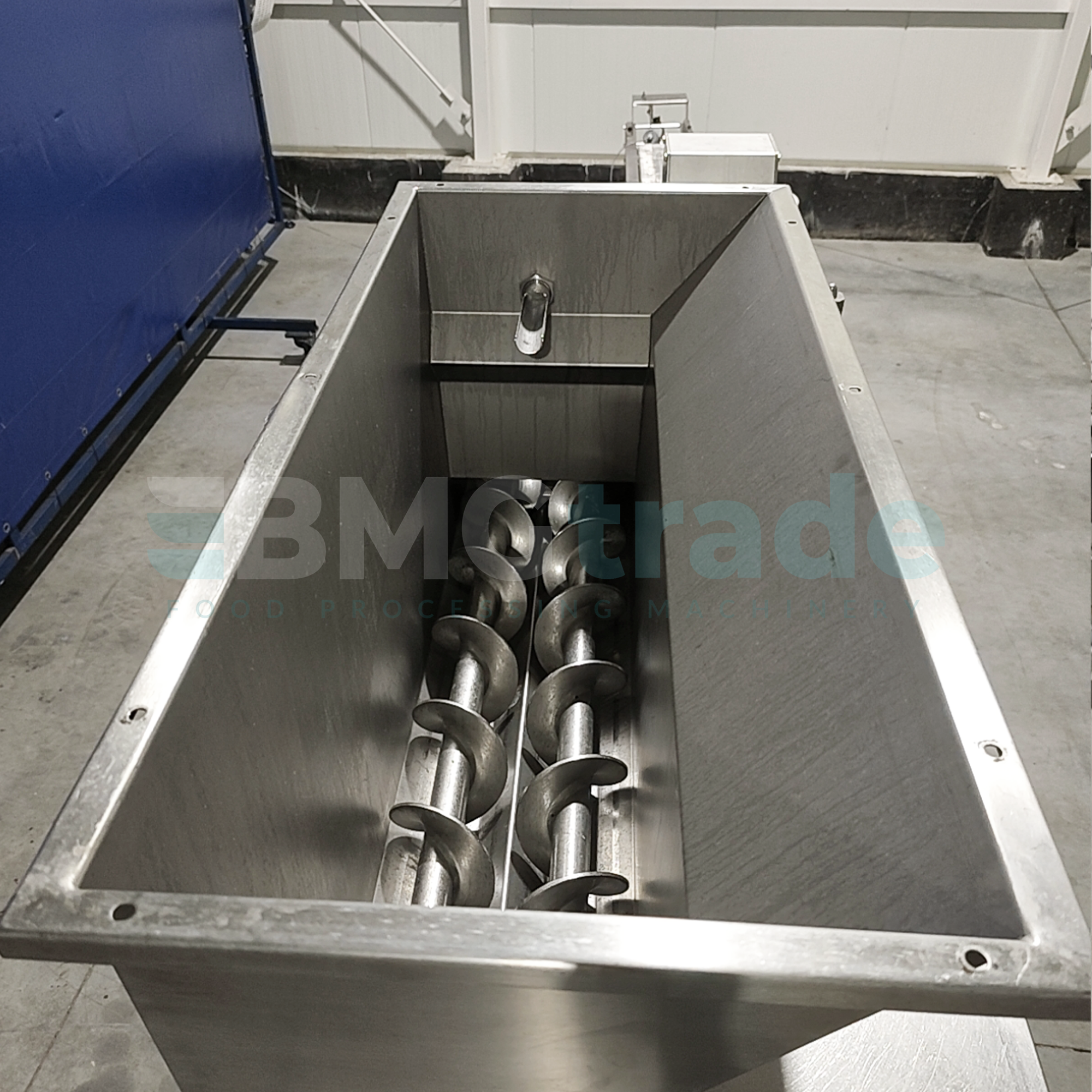

Raw material goes into the hopper, from where a feed screw carries it to the forming system. A high-speed mold plate fills the molds with the mass and gives the products the set shape and weight, and a pneumatic knock-out system places the finished portions on the conveyor. Changing the product range means swapping the mold, which allows quick changeovers between round and oval burgers of different diameters and weights. The machine is operated from a simple pushbutton panel.
Key advantages of the FORMAX F-6 burger forming machine
The compact construction and quick mold changes make the forming machine well suited to plants that produce different products in short runs. High repeatability of burger weight and shape results in uniform quality and easier portioning and packing.

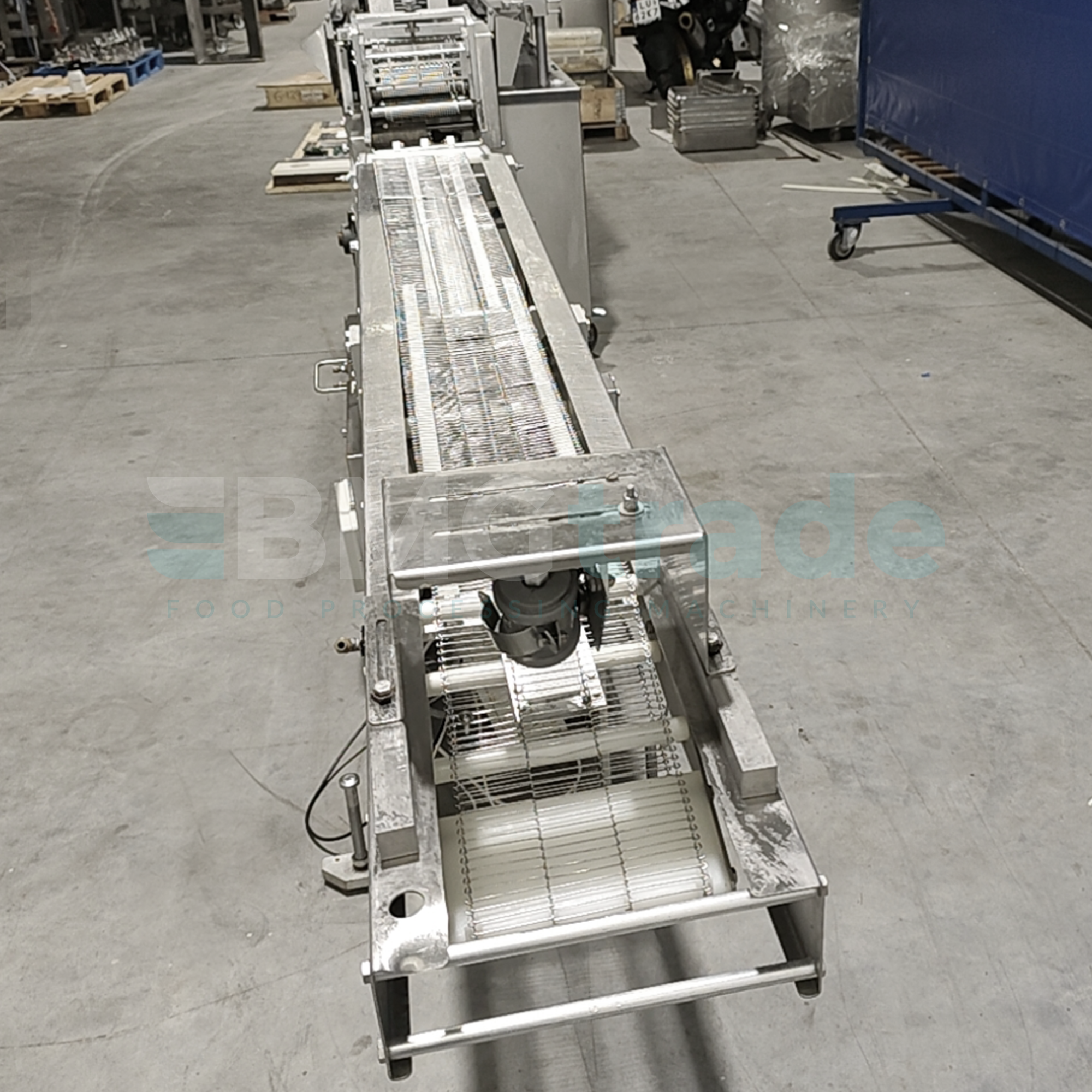

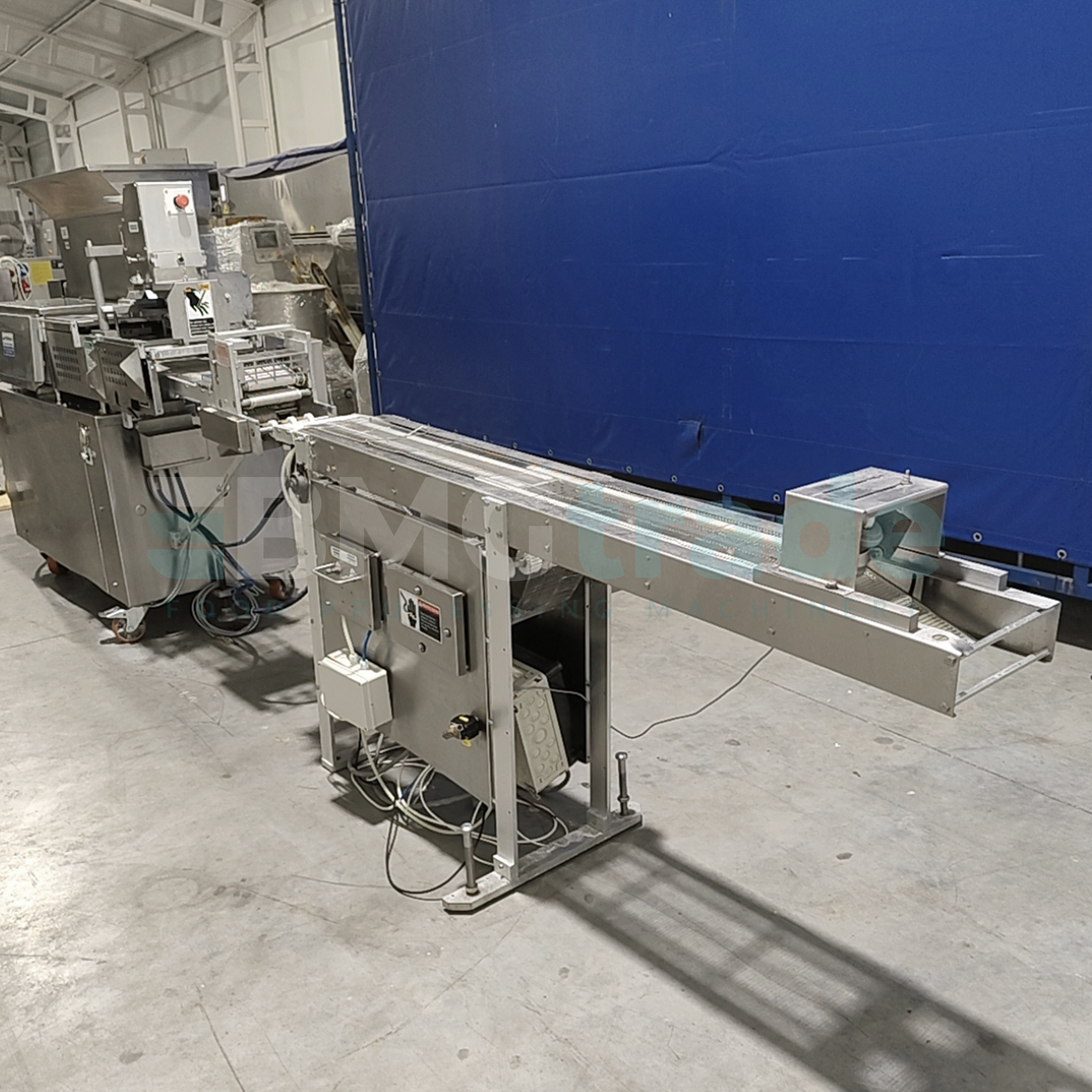

The set with a conveyor receiving the finished products allows the forming machine to be connected straight to subsequent stages of the line, such as breading, freezing, or packaging. The wide choice of molds supplied, from 45 to 200 g, and the included spare parts reduce downtime and make it possible to start production immediately.
Technical specifications of the FORMAX F-6 burger forming machine
- Manufacturer: FORMAX
- Model: F-6

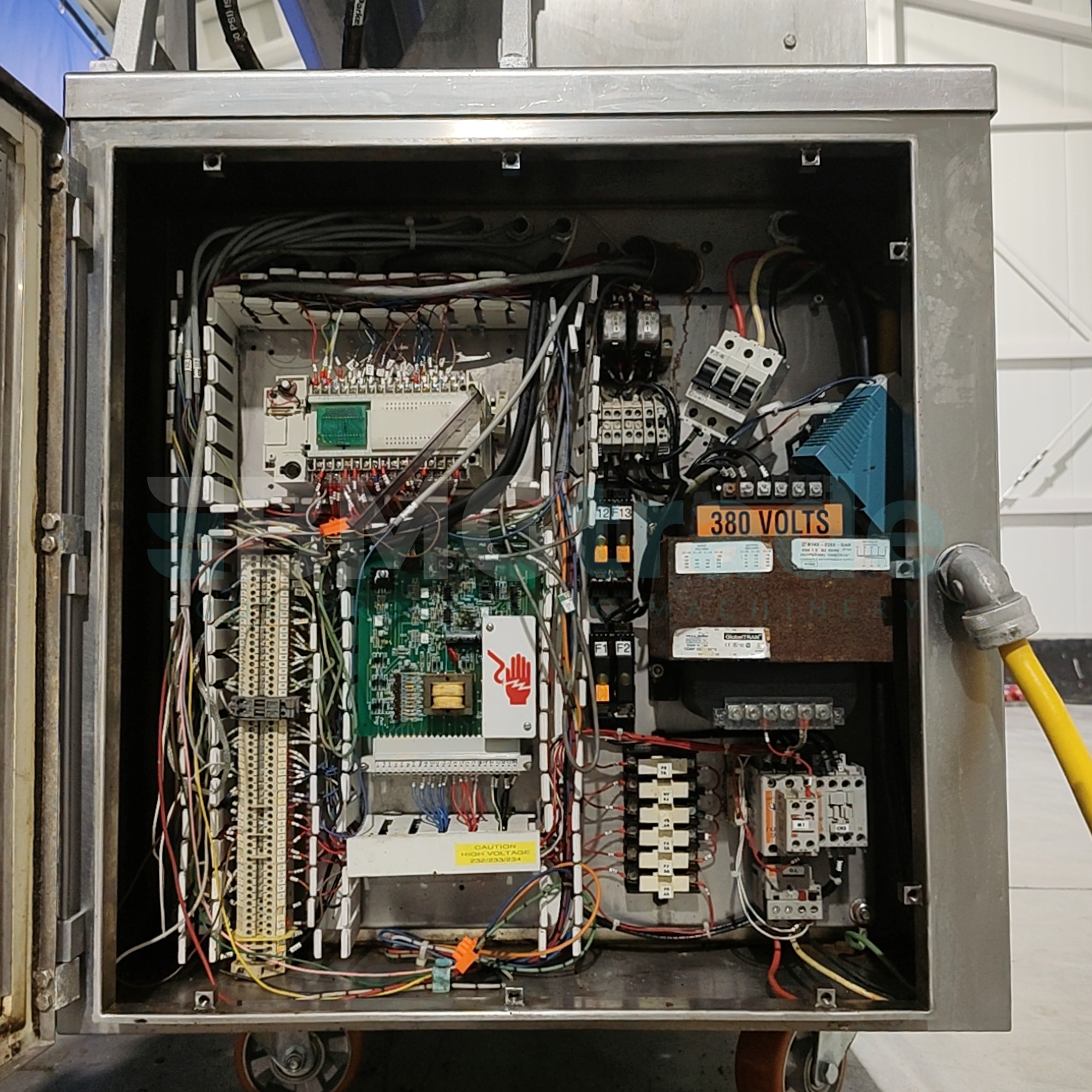

- Power supply: 14 kVA, 380 V, 3 phases, 50 Hz
- Capacity: approx. 450 kg/h
- Hopper capacity: approx. 136 kg
- Included: spare parts
- Dimensions of the whole set: 5000 x 800 x H: 1770 mm
- Forming machine dimensions: 2700 x 800 x H: 1770 mm

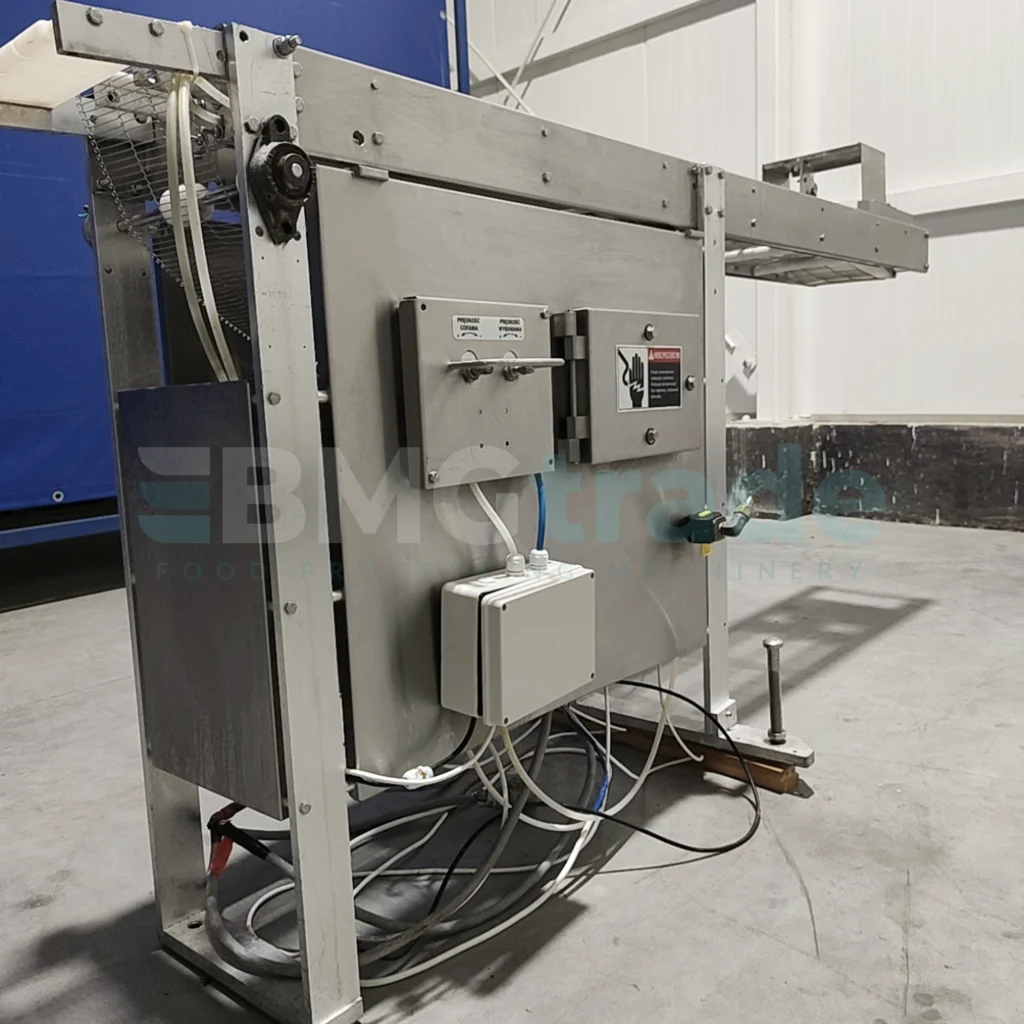

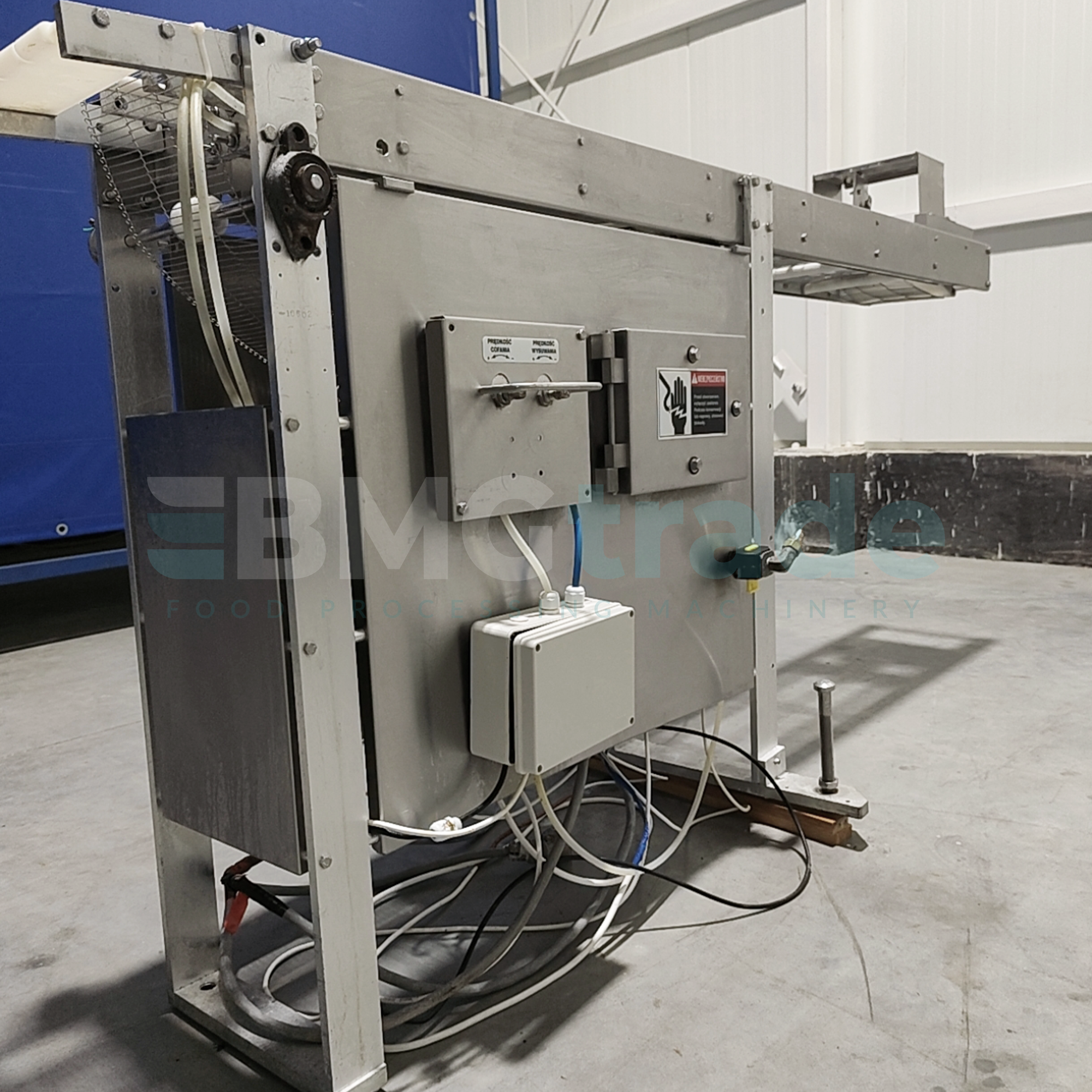

- Conveyor dimensions: 2040 x 560 x H: 1200 mm
Available molds (dimensions and weight)
Round molds:
- 90 mm (45 g)
- 90 mm (50 g)
- 105 mm (80 g)
- 127 mm (120 g, 150 g, 200 g)
- 130 mm (190 g)
Oval molds:
- 125 x 107 mm (90 g)
- 142 x 119 mm (approx. 150 g)
- 156 x 132 mm (180 g, 200 g)
Application of the FORMAX F-6 burger forming machine
The FORMAX F-6 forming machine is used in meat and poultry processing plants for producing beef and poultry burgers, patties, formed minced meat, and nuggets. It also works well for non-meat products and in small and medium plants that need a flexible, compact forming machine.
FORMAX F-6 burger forming machine available at BMG Trade
At BMG Trade, we specialize in trading machinery for the food industry, including proven forming machines from the renowned FORMAX brand. The set we offer, with the F-6 forming machine, a conveyor, molds from 45 to 200 g, and spare parts, is ready for operation in a production facility. Contact us to find out about current availability and pricing for the FORMAX F-6 burger forming machine.
Frequently asked questions about the FORMAX F-6 burger forming machine
What molds are available in the set with the FORMAX F-6 forming machine? The set includes round molds with diameters of 90, 105, 127, and 130 mm and oval molds measuring 125 x 107, 142 x 119, and 156 x 132 mm, for portions from 45 to 200 g, as well as spare parts.
What products can be formed on the FORMAX F-6 forming machine? The forming machine is used to produce burgers, patties, formed minced meat, and nuggets from meat, poultry, and non-meat products.
