NOMA KN-60
60-liter high-speed meat cutter

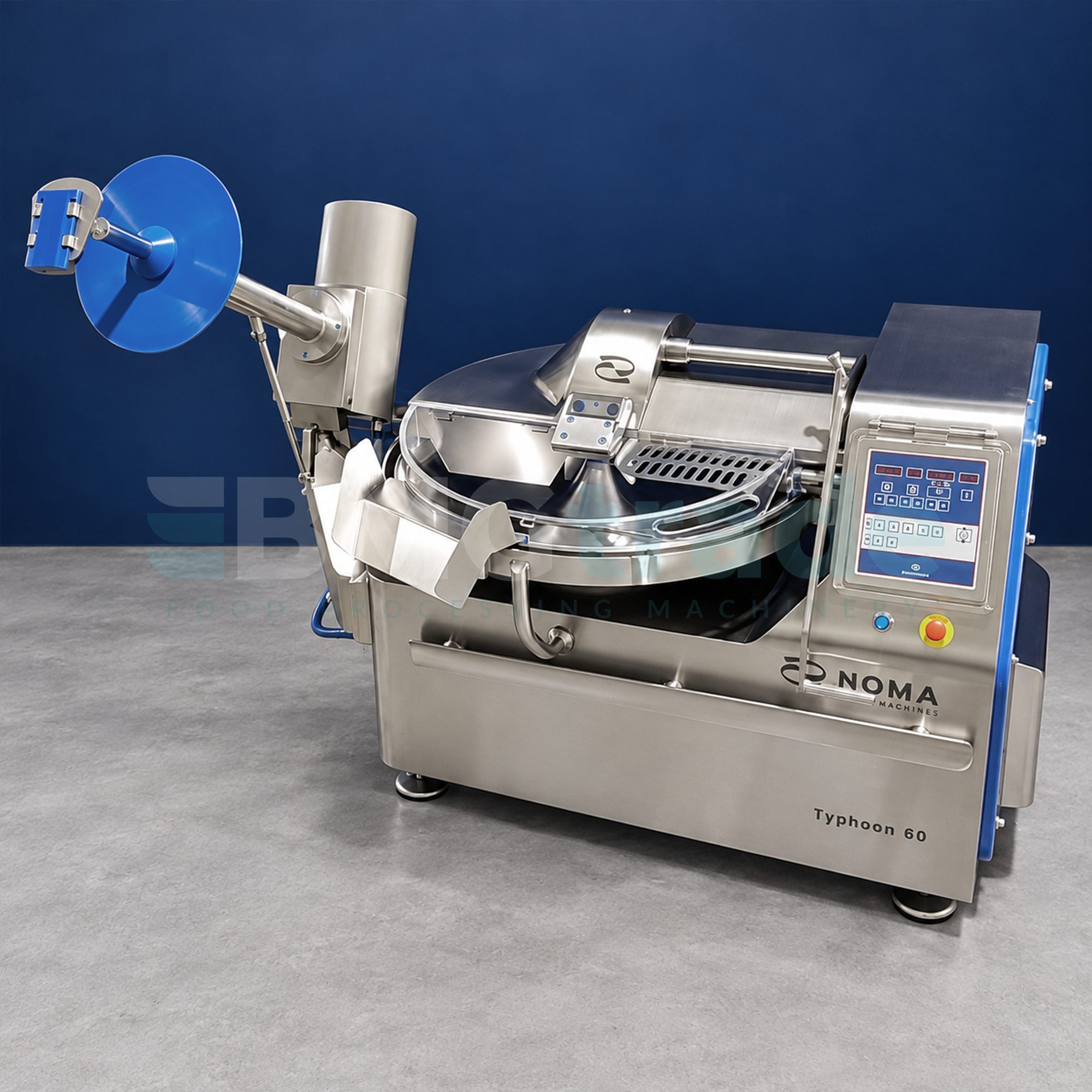

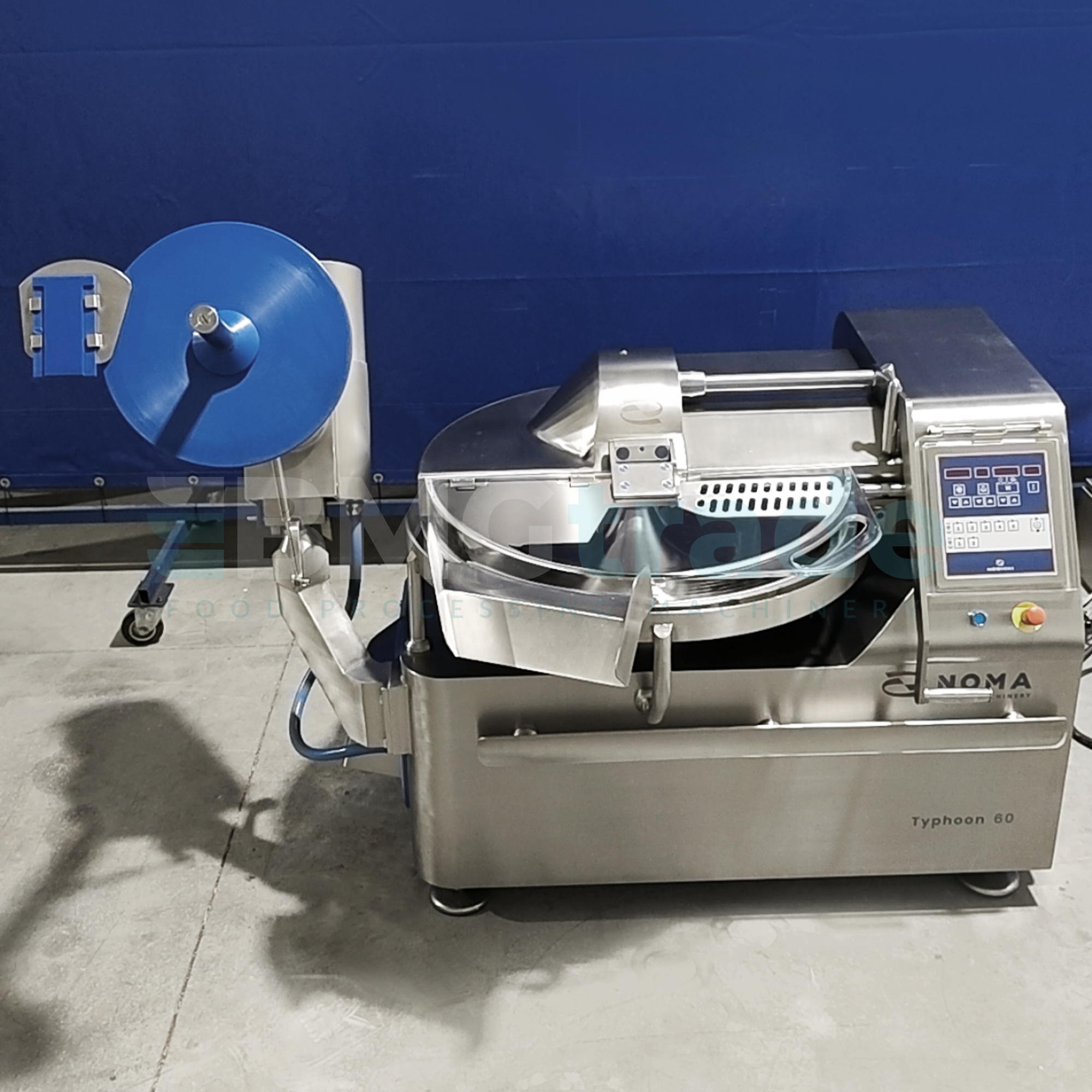

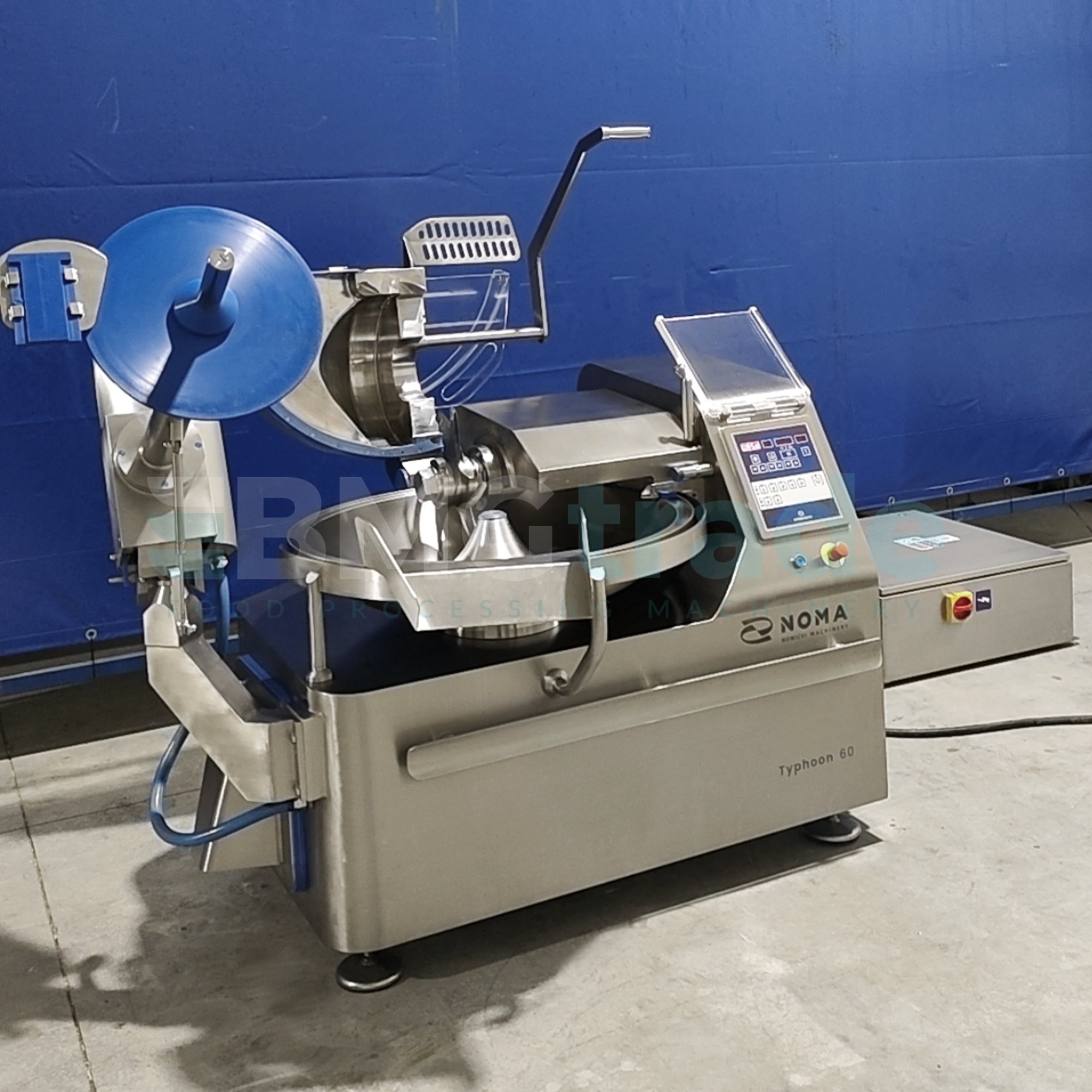

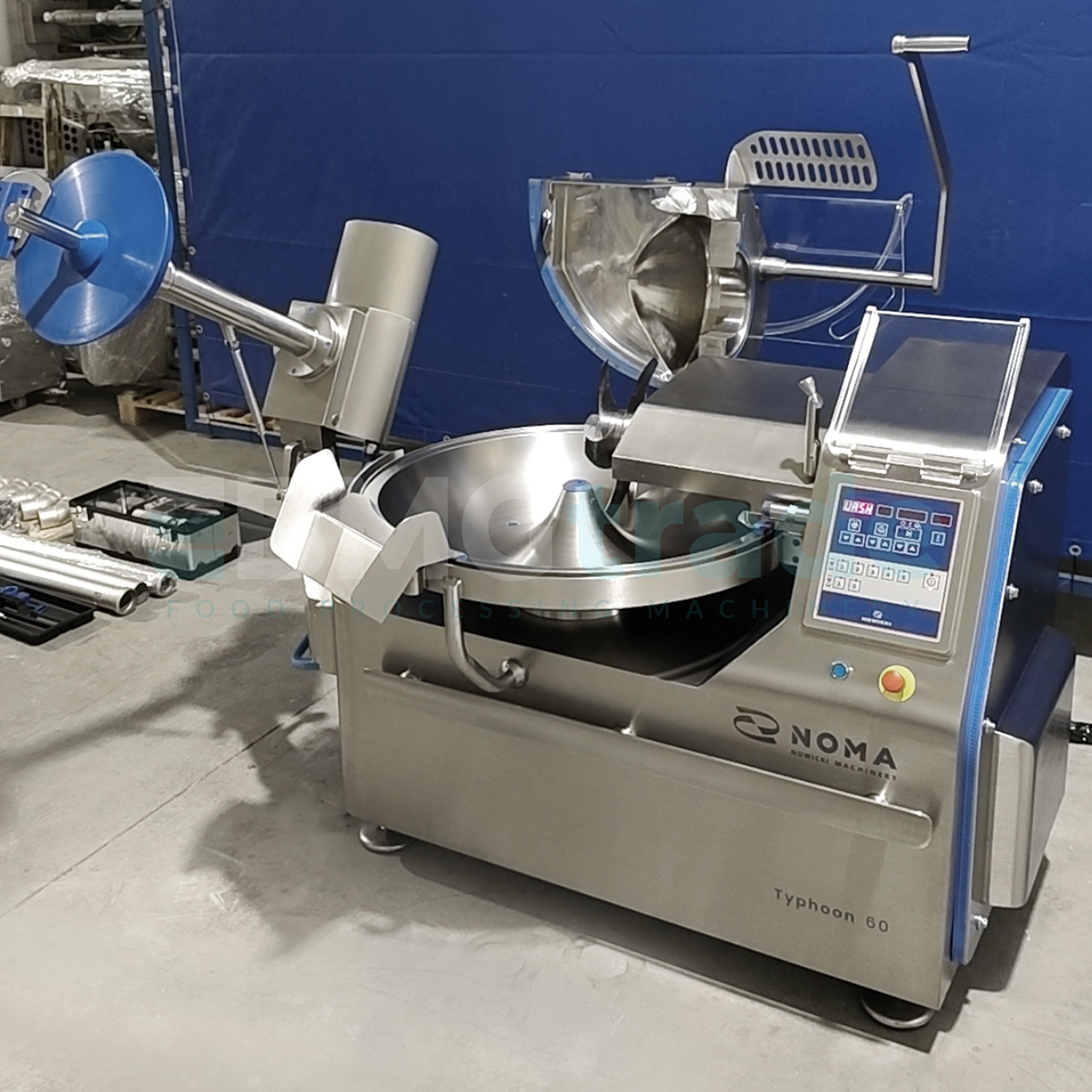

The NOMA NOWICKI KN-60 cutter is a high-speed meat cutter with a 60-liter bowl, manufactured in 2024, designed for grinding, emulsifying, and mixing meat, fat, and other raw materials in small and medium-sized food processing plants and food service companies. The machine is equipped with a microprocessor-based control system with memory for 40 processing programs, stepless speed control for the blades and bowl, hydraulic unloading, and a hygienic design that facilitates cleaning. Replacement parts are included.
How does the NOMA NOWICKI KN-60 cutter work?

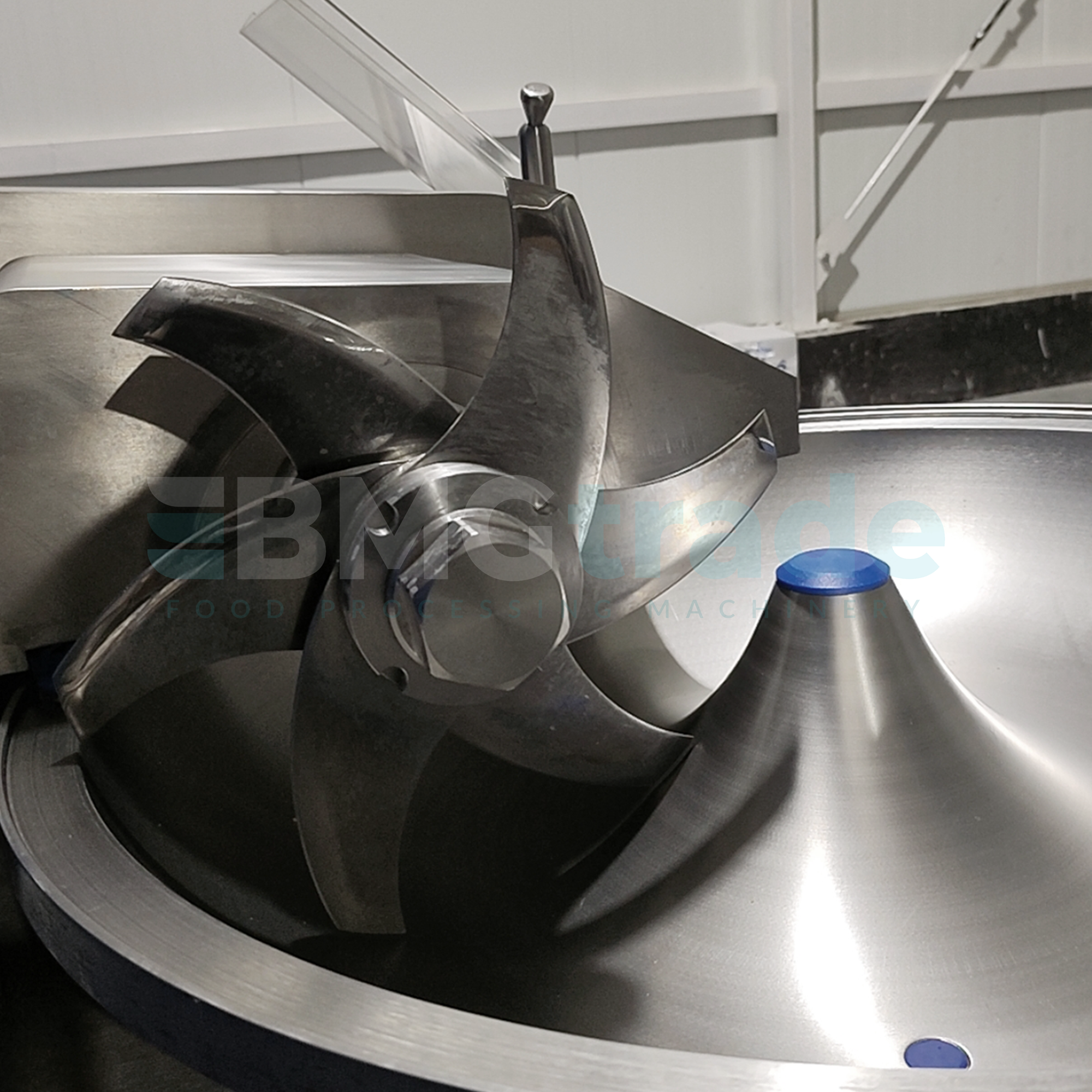

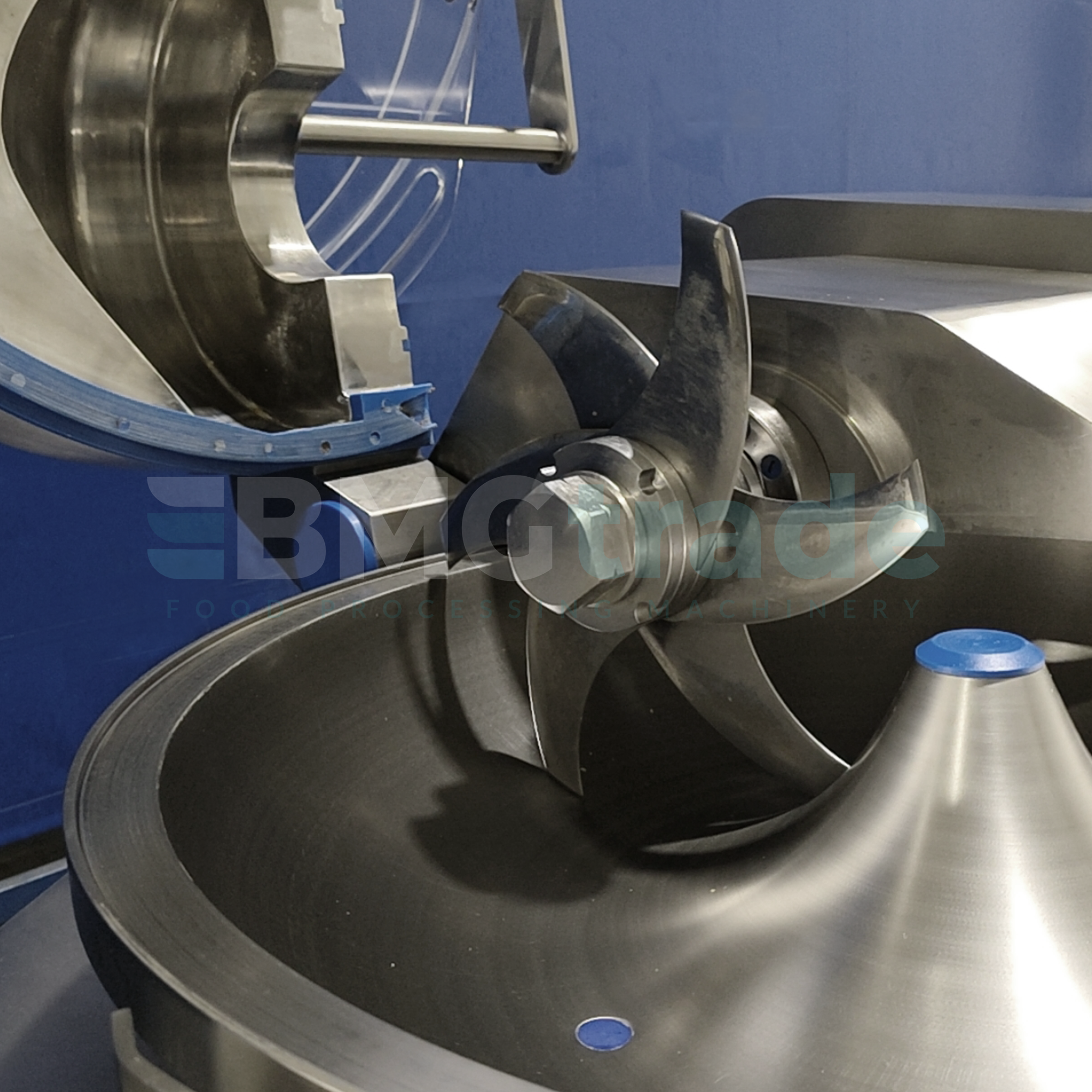

The raw material is placed into a rotating bowl, where a high-speed rotating shaft with blades grinds it into small pieces or an emulsion. The blade speed is continuously adjustable within the range of 200 – 6,000 rpm, and the bowl rotates at an adjustable speed, ensuring that the raw material is continuously fed to the blades. The cutter operates using “air cutting” technology and features optimized bowl and blade geometry; the selection of blade combinations allows the machine to be tailored to the type of product.
The mixing function with reverse blade rotation (from – 200 to – 400 rpm) allows the filling to be gently mixed without further grinding. Once the process is complete, the finished mixture is discharged hydraulically, with an adjustable discharge disc speed, for both dry and liquid mixtures. All operating parameters are controlled by a microprocessor, which can store up to 40 processing programs.
Key Features of the NOMA NOWICKI KN-60 meat cutter
A wide range of blade speeds, smooth adjustment of blade and bowl rotation speeds, and the ability to select different blade combinations provide great flexibility when changing recipes and product consistencies. Reverse mixing, the ability to save 40 programs, and high hourly throughput ensure consistent stuffing quality with short processing times.
The cutter’s design facilitates hygiene and operator comfort: all food-contact surfaces are polished, flat surfaces are angled at 3° to allow water to drain, and the covers open for cleaning. The high product entry threshold, the bowl rim, the opening in the lid for adding spices during operation, quick access to the blades, and the sound-dampening lid improve ergonomics and working comfort.
Technical Specifications of the NOMA NOWICKI KN-60 meat cutter
- Manufacturer: NOMA (NOWICKI MACHINERY)
- Machine type: high-speed cutter
- Model: KN-60
- Year of manufacture: 2024
- Power supply: 3 x 400 V, 50 Hz
- Marking: CE, manufactured in the EU
- Bowl capacity: 60 L (60 dm³)
- Blade shaft speed: 200 – 6,000 rpm, continuously adjustable
- Mixing speed (reverse rotation): from -200 to -400 rpm
- Bowl speed: continuously adjustable
- Blade combination selection: Yes, choice of blade sets
- Cutting technology: “air cutting,” optimized bowl and blade geometry

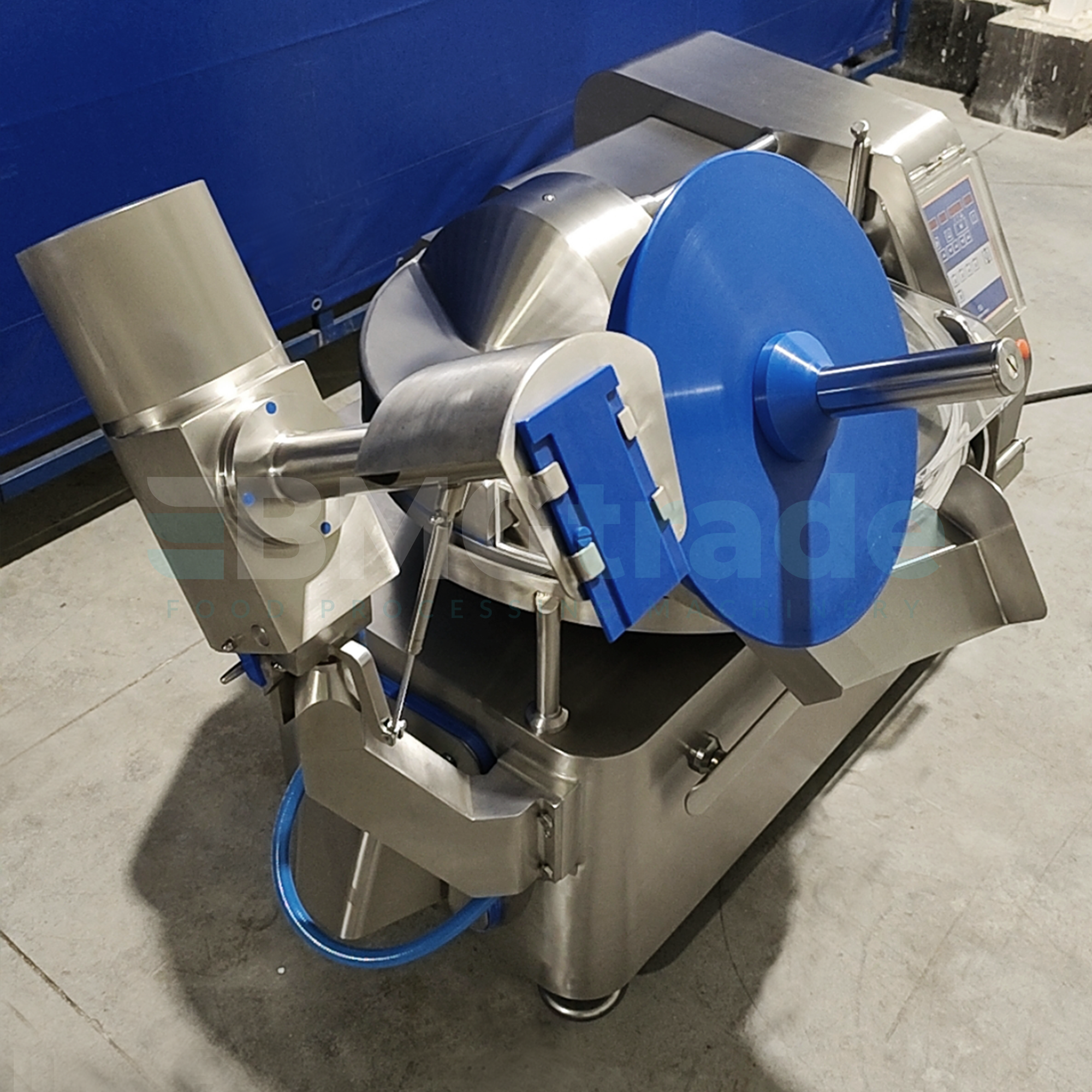

- Unloading: hydraulic, adjustable unloading disc speed, optional stepped disc
- Control: microprocessor-based, memory for up to 40 processing programs
- Length: 1650 mm
- Width: 1,310 mm
- Height with the cover lowered: 1,190 mm
- Height with cover raised: 1,850 mm

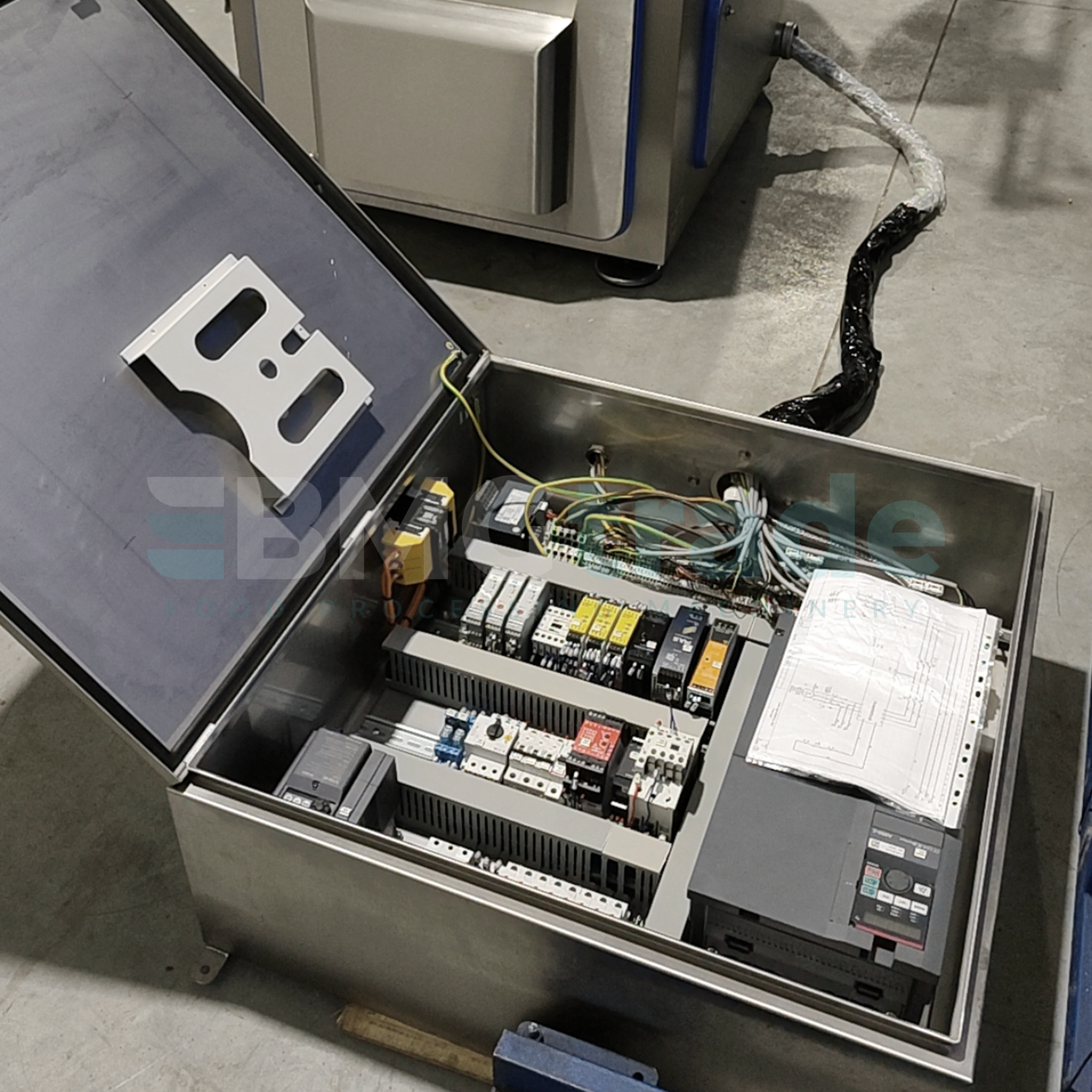

- Control cabinet dimensions: 800 x 800 x 300 mm
- Weight: 1,350 kg
- Hygiene: polished food-contact surfaces, flat surfaces angled at 3°, removable covers, and a bowl drain hole for easy cleaning
- Ergonomics: high product entry threshold, bowl rim, opening in the lid for adding spices during operation, quick access to blades, sound-dampening lid

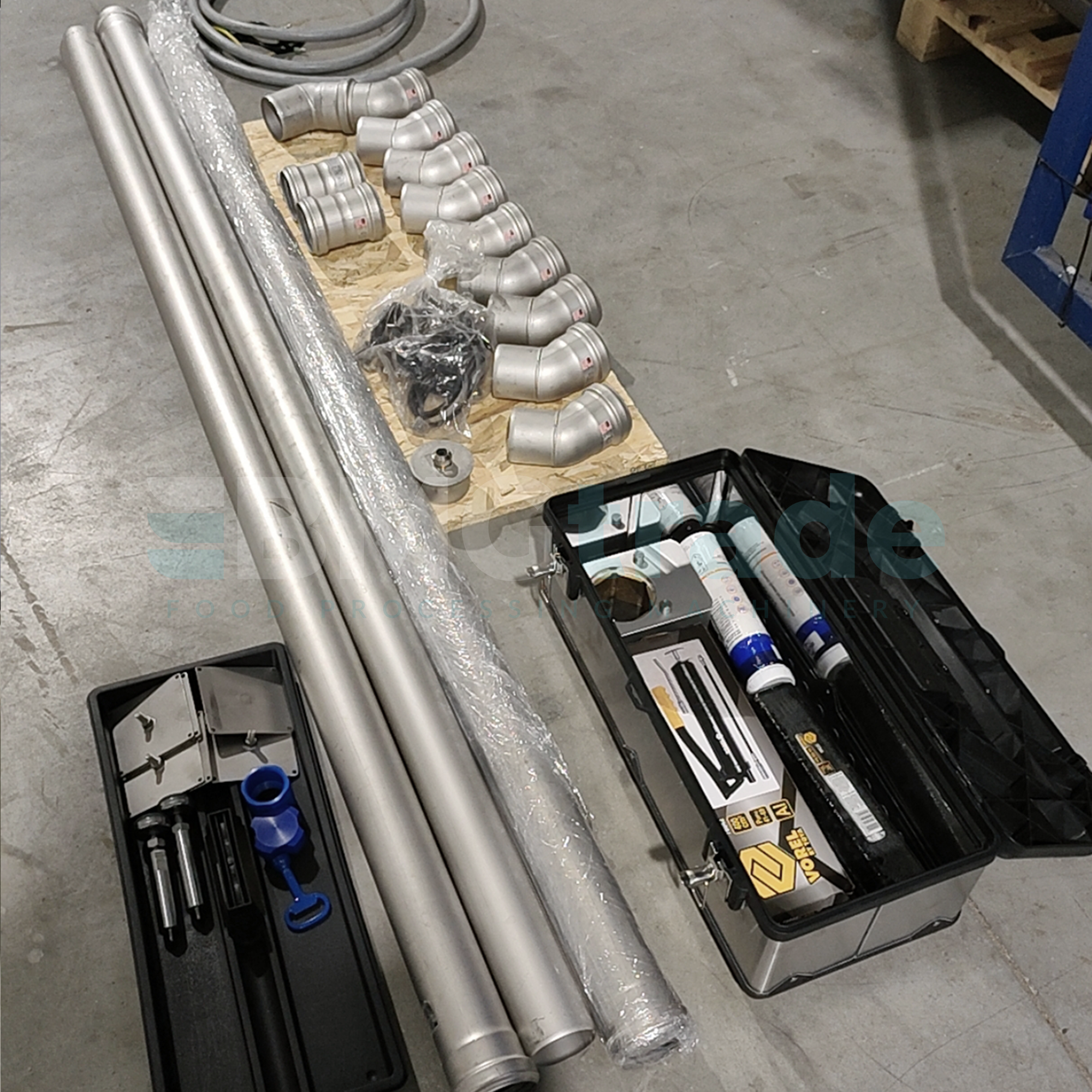

- Replacement parts: included
Use of the NOMA NOWICKI KN-60 meat cutter
The KN-60 cutter is used to produce meat fillings with varying degrees of fineness, fat emulsions (including those made from raw pork rind), as well as for processing fish, confectionery products, fruits and vegetables, ready-to-eat meals, and animal feed. It is primarily intended for smaller production facilities, meat processing plants, and food service businesses.
The NOMA NOWICKI KN-60 Cutter is available from BMG Trade
At BMG Trade, we specialize in the sale of machinery for the food industry, including proven equipment for grinding and emulsifying meat. The NOMA NOWICKI KN-60 cutter we are offering was manufactured in 2024 and is sold with a set of replacement parts included. Contact us to find out about the current availability and price quote for the NOMA NOWICKI KN-60 cutter.
Frequently Asked Questions About the NOMA NOWICKI KN-60 Cutter
What is the capacity of the NOMA NOWICKI KN-60 cutter’s bowl? The bowl has a capacity of 60 liters (60 dm³).
What is the rotational speed of the NOMA NOWICKI KN-60 cutter? The blade shaft rotates at a speed of 200 – 6,000 rpm, and mixing in the opposite direction occurs at a speed of -200 to -400 rpm.
What year was the NOMA NOWICKI KN-60 cutter manufactured? The machine was manufactured in 2024
Does the NOMA NOWICKI KN-60 cutter have a program memory? Yes. The microprocessor-based control system allows you to save up to 40 machining programs.
How is the NOMA NOWICKI KN-60 cutter unloaded? Unloading is hydraulic, with an adjustable discharge disc speed, for both dry and liquid materials.
Does the NOMA NOWICKI KN-60 fishing boat come with replacement parts? Yes, replacement parts are included.
