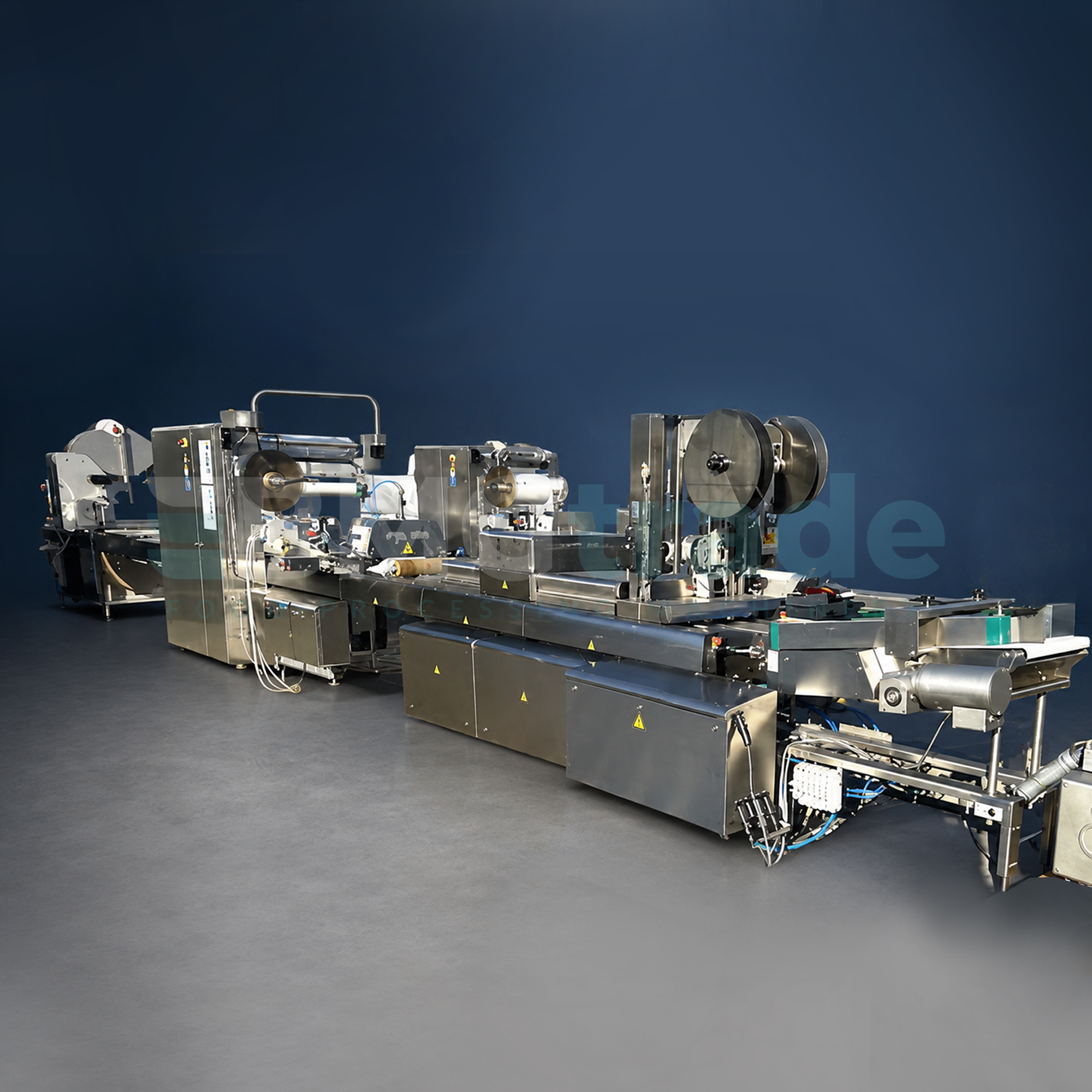

Multivac R535
The Multivac R535 is a roll-fed thermoforming packaging machine manufactured by Multivac. Machines from the R series are widely used across the food industry, including meat processing, for packing products into tray/rollstock-style packs that ensure a long shelf life and an attractive product presentation.
How does the Multivac R535 thermoformer work?
The Multivac R535 forms packs directly from the bottom film, shaping them to match the dimensions of the product being packed, then fills and seals them with top film under vacuum or modified atmosphere (MAP) conditions, significantly extending product shelf life. The entire process — forming, filling, sealing, and cutting the packs — runs continuously on a single production line, delivering high packaging throughput while maintaining consistent pack quality.
According to the nameplate data, the unit on offer dates from 2011 and was manufactured to Multivac’s German quality standards.
The machine is additionally equipped with an MR625/MR6318 Cross Web Labeller, manufactured by MR Etikettiertechnik GmbH & Co. KG of Enger. The unit provides fully automatic cross web labelling with high-precision label placement across the sealing film and is integrated with the machine’s sealing system, eliminating the need for manual labeling and speeding up the entire packaging process.
Key advantages of the Multivac R535
The Multivac R535 enables both vacuum and modified atmosphere (MAP) packaging, extending the shelf life of packed food products while preserving their freshness and quality during transport and storage. A film width of 530 mm and a stroke of 360 mm support pack formats up to 160 x 120 mm, and the machine can be flexibly reconfigured for different formats depending on the mold in use.
The robust, industrial-grade construction from this German manufacturer, together with Multivac’s proven technology, ensures reliable operation and highly consistent packaging quality — a key factor for plants running high-volume food production.
An additional advantage is the integrated MR625/MR6318 Cross Web Labeller (Multivac Group – Marking & Inspection), combining fully automatic cross web labelling with high-precision label placement and integration with the sealing system, which reduces the amount of manual work on the packaging line and streamlines the labeling of finished packs.
Technical specifications of the Multivac R535
Manufacturer: Multivac
Machine type: Roll-fed thermoformer (Verpackungsmaschine)
Model: R535
Machine number: 140005
Year of manufacture: 2011
Power supply voltage: 400 V
Frequency: 50 Hz
Number of phases: 3/N/PE AC
Rated power: 27 kW
Rated current: 67 A
Maximum protection (fuse): 80 A
Film width: 530 mm
Stroke: 360 mm
Pack format dimensions: 160 x 120 mm
Labeler MR625/MR6318 – Cross Web Labeller, MR Etikettiertechnik
Labeler model: MR625 OP6318LS570K15
Labeler features: Fully automatic cross web labelling, high-precision label placement, integrated with sealing system
Labeler machine number: 29431/10
Labeler year of manufacture: 2010
Labeler power supply: 230 V, 50 Hz, 1000 VA
Application of the Multivac R535 thermoformer
The Multivac R535 is used across the food processing industry, including meat, poultry, and fish processing, as well as the production of cold cuts and other products requiring vacuum or modified atmosphere packaging. The machine performs well both on high-throughput production lines and in plants with a varied product range, where flexibility in pack format selection matters.
Multivac R535 available at BMG Trade
At BMG Trade, we specialize in trading machinery for the food industry, including professional packaging lines from renowned brands such as Multivac. The R535 thermoformer we offer, manufactured in 2011, is a solid, proven unit from this German manufacturer, ready for operation in a production facility. Contact us to find out about current availability and pricing for the Multivac R535 thermoformer.
