BOSS ATT 46 A
Designed for dip-shrinking packaging in shrink film.

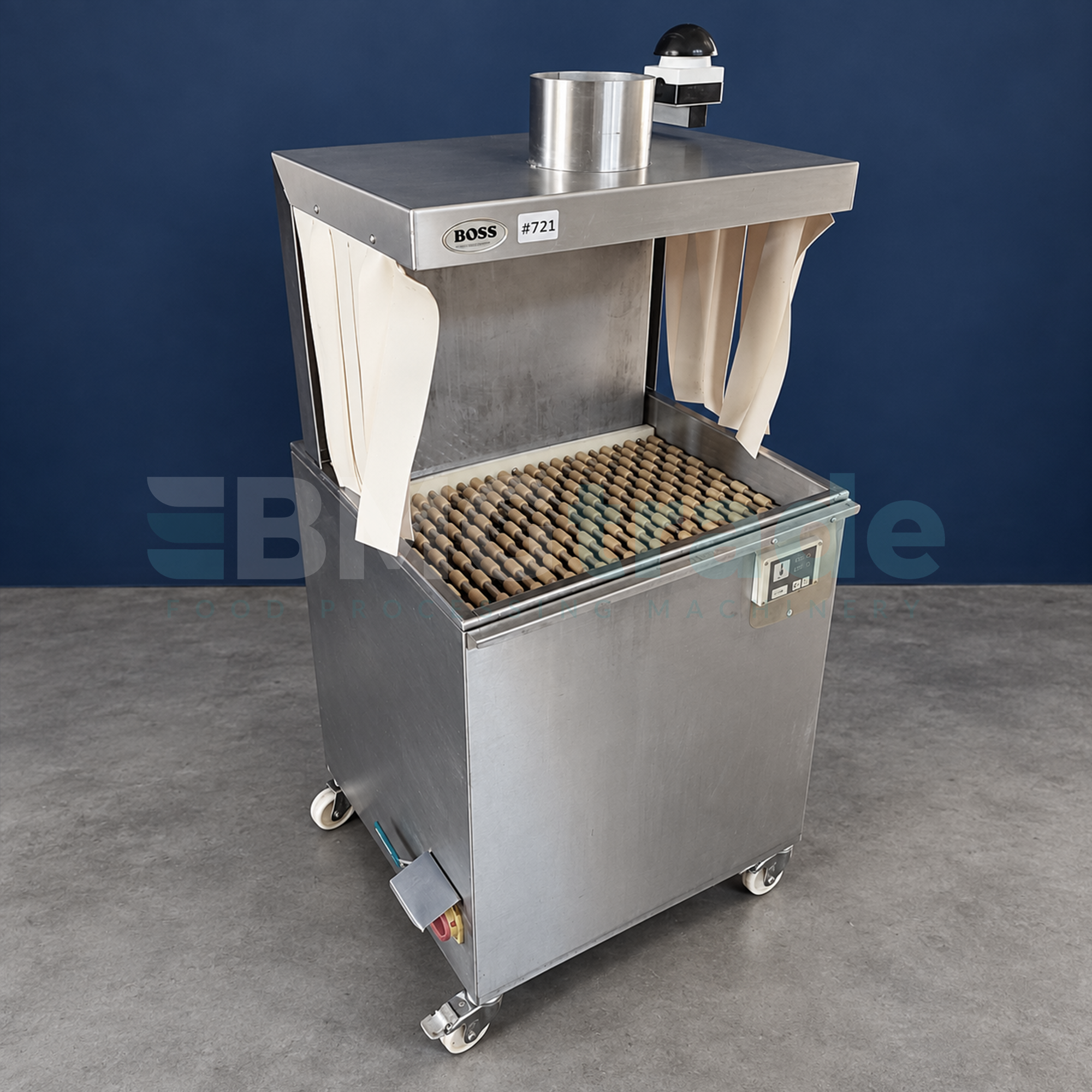

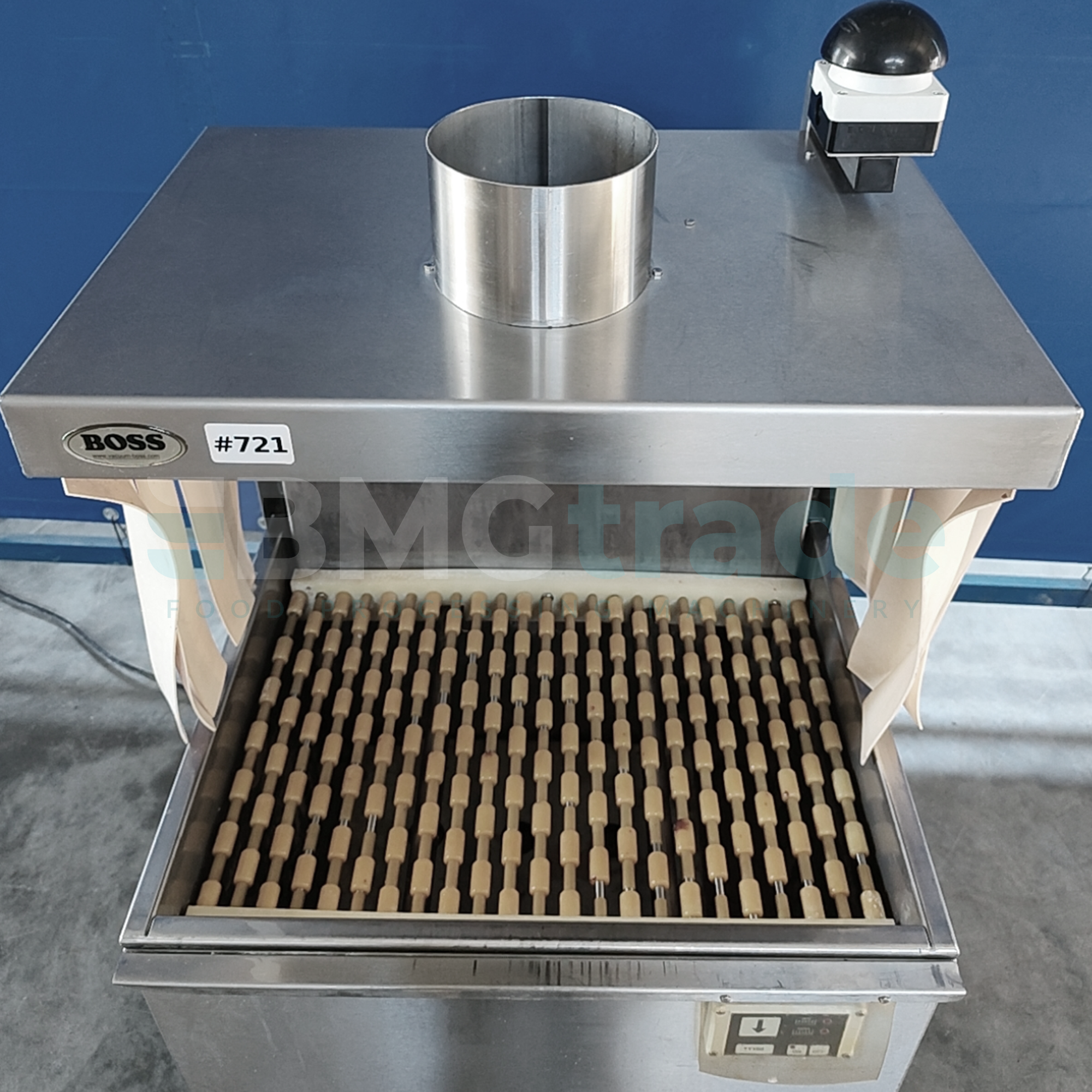

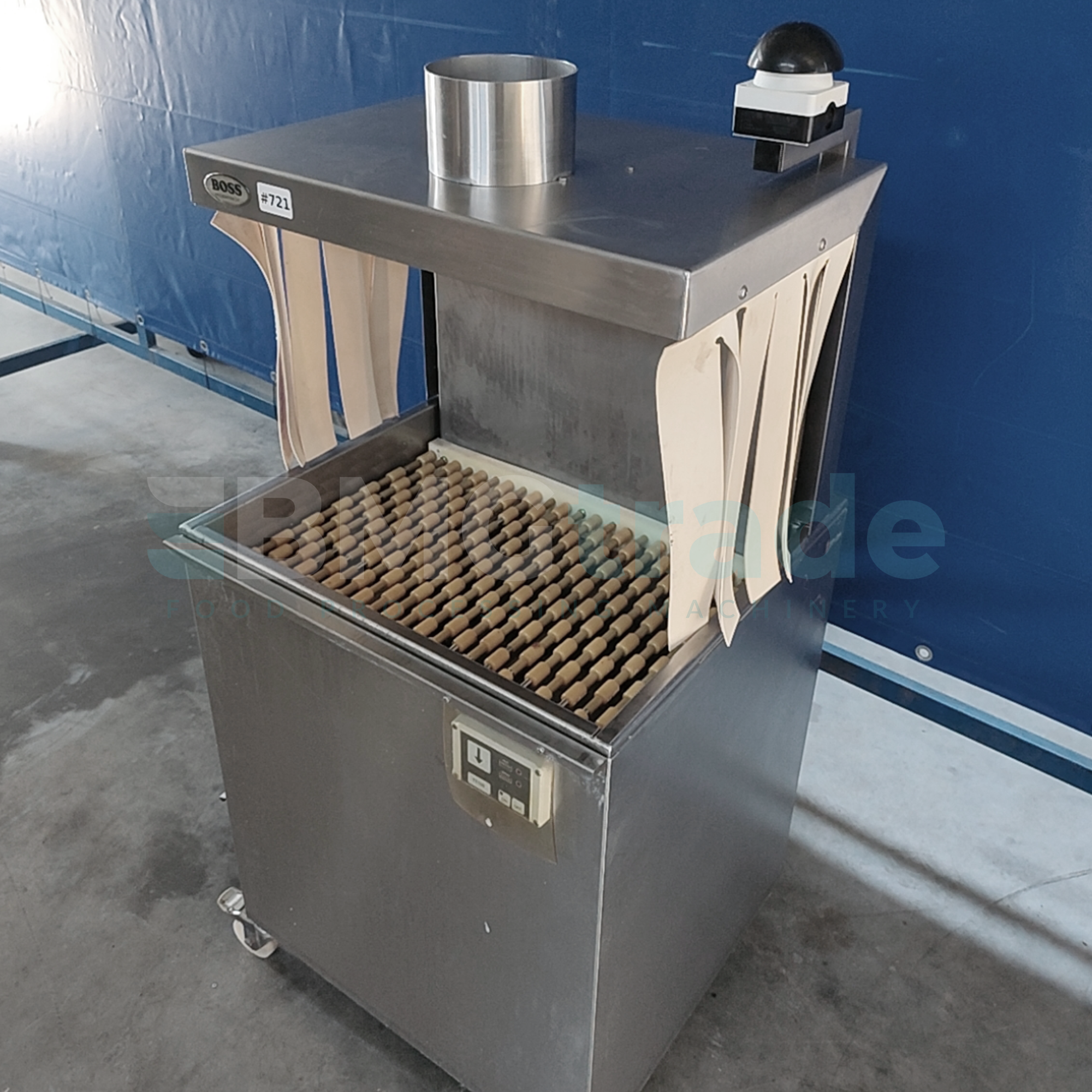

The BOSS ATT 46 A is a shrink dip tank from the BOSS brand (Helmut Boss Verpackungsmaschinen KG, Germany), designed for dip-shrinking packaging in shrink film. It serves as an integral part of a shrink-film packaging line. Using this unit extends product shelf life through vacuum packaging combined with shrinking, and improves the aesthetics of the packaging.
How does the BOSS ATT 46 A shrink dip tank work?
A product that has already been vacuum-packed in shrink film is immersed in the tank’s chamber, which is filled with heated water. Under the effect of temperature, the film shrinks tightly around the surface of the product, creating an attractive, closely fitting package. The DIP 200 controller monitors the water level and temperature in the tank, and an immersion (dip) depth of approximately 250 mm allows packages weighing up to approximately 110 kg to be shrunk. A dip-chamber cover reduces heat loss during operation, improving the process’s energy efficiency.
Key advantages of the BOSS ATT 46 A shrink dip tank
Combining vacuum packaging with film shrinking extends the shelf life of packaged products and significantly improves the aesthetics of the packaging — the film adheres tightly to the product, eliminating air pockets and loose material. The water level and temperature monitoring system ensures repeatable shrinking results regardless of the production batch, resulting in consistently high-quality finished packaging.
The unit’s compact dimensions allow it to be integrated into a packaging line as the next processing step, directly after vacuum packaging, without the need to move the product between separate workstations. The tank’s construction, in line with standards used in the food industry, makes it easier to keep the unit clean.
Technical specifications of the BOSS ATT 46 A shrink dip tank
- Manufacturer: BOSS (Helmut Boss Verpackungsmaschinen KG, Bad Homburg, Germany)
- Type: ATT 46 A
- Year of manufacture: 2013
- Power supply: 400 V, 50 Hz
- Power: 9.5 kW
- Rated current: 13.8 A
- Dimensions: 700 x 650 x H: 1450 mm
- Tank dimensions: 600 x 430 x H: 400 mm
- Immersion (dip) depth: approx. 250 mm
- Load capacity: approx. 110 kg
- Control: DIP 200 (water level and temperature monitoring)
- Country of manufacture: Germany
- Compliance: CE
Application of the BOSS ATT 46 A shrink dip tank
The BOSS ATT 46 A shrink dip tank is used as an integral part of packaging lines in meat, fish, and vegetable processing plants, wherever vacuum-packed products require additional film shrinking to extend shelf life and improve the aesthetics of the final package.
BOSS ATT 46 A shrink dip tank available at BMG Trade
At BMG Trade, we specialize in trading machinery for the food industry, including proven packaging and shrinking equipment from the renowned BOSS brand. The ATT 46 A tank we offer, from 2013, is a solid 9.5 kW unit, ready for integration into a packaging line. Contact us to find out about current availability and pricing for the BOSS ATT 46 A shrink dip tank.
Frequently asked questions about the BOSS ATT 46 A shrink dip tank
What role does the BOSS ATT 46 A shrink dip tank play in a packaging line? The unit is an integral part of a shrink-film packaging line — a vacuum-packed product is heated in it so that the film shrinks tightly around its surface, which extends the product’s shelf life and improves the aesthetics of the packaging.
What is the immersion depth and maximum load capacity of the ATT 46 A tank? The immersion (dip) depth is approximately 250 mm, and the maximum load capacity for shrunk packages is approximately 110 kg.
