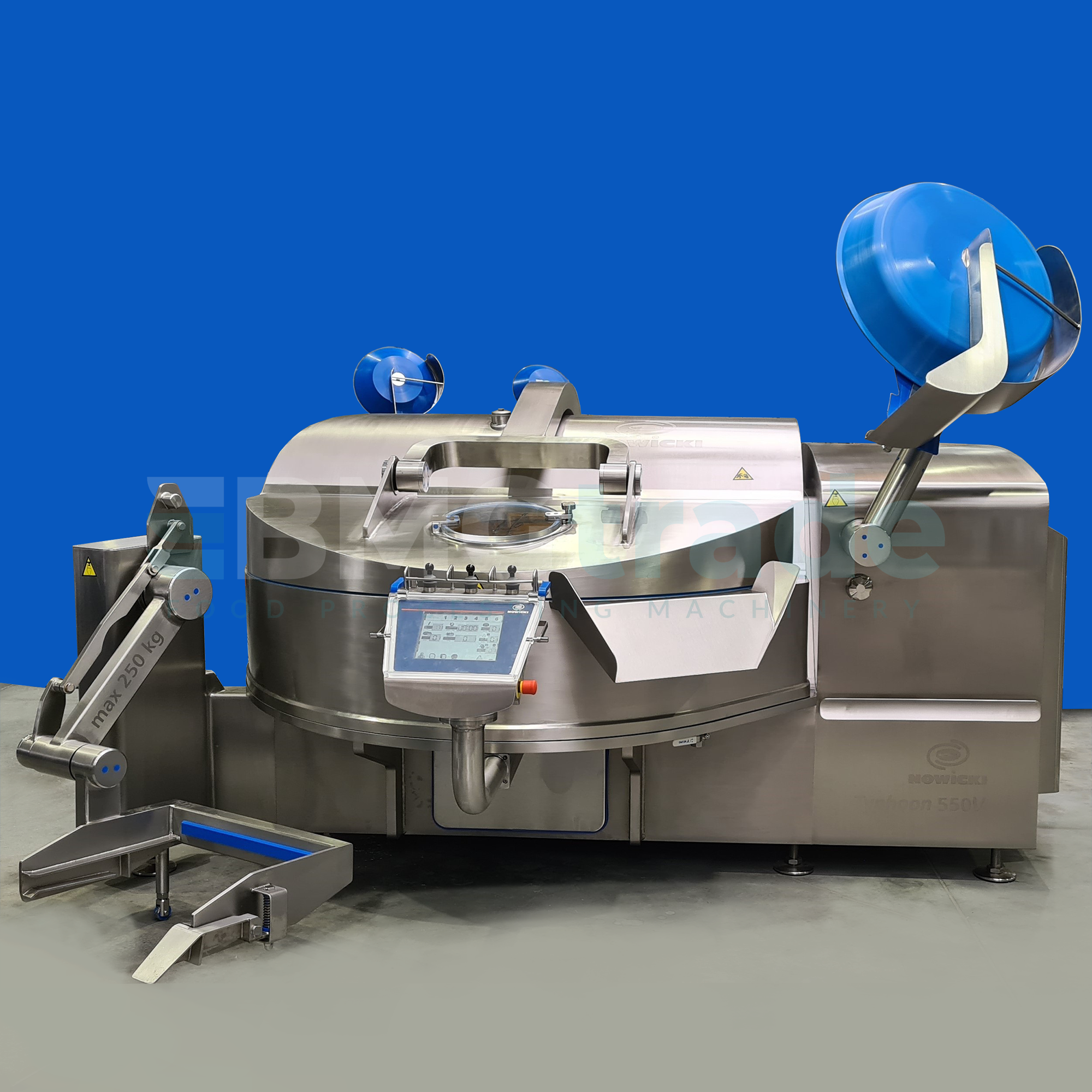

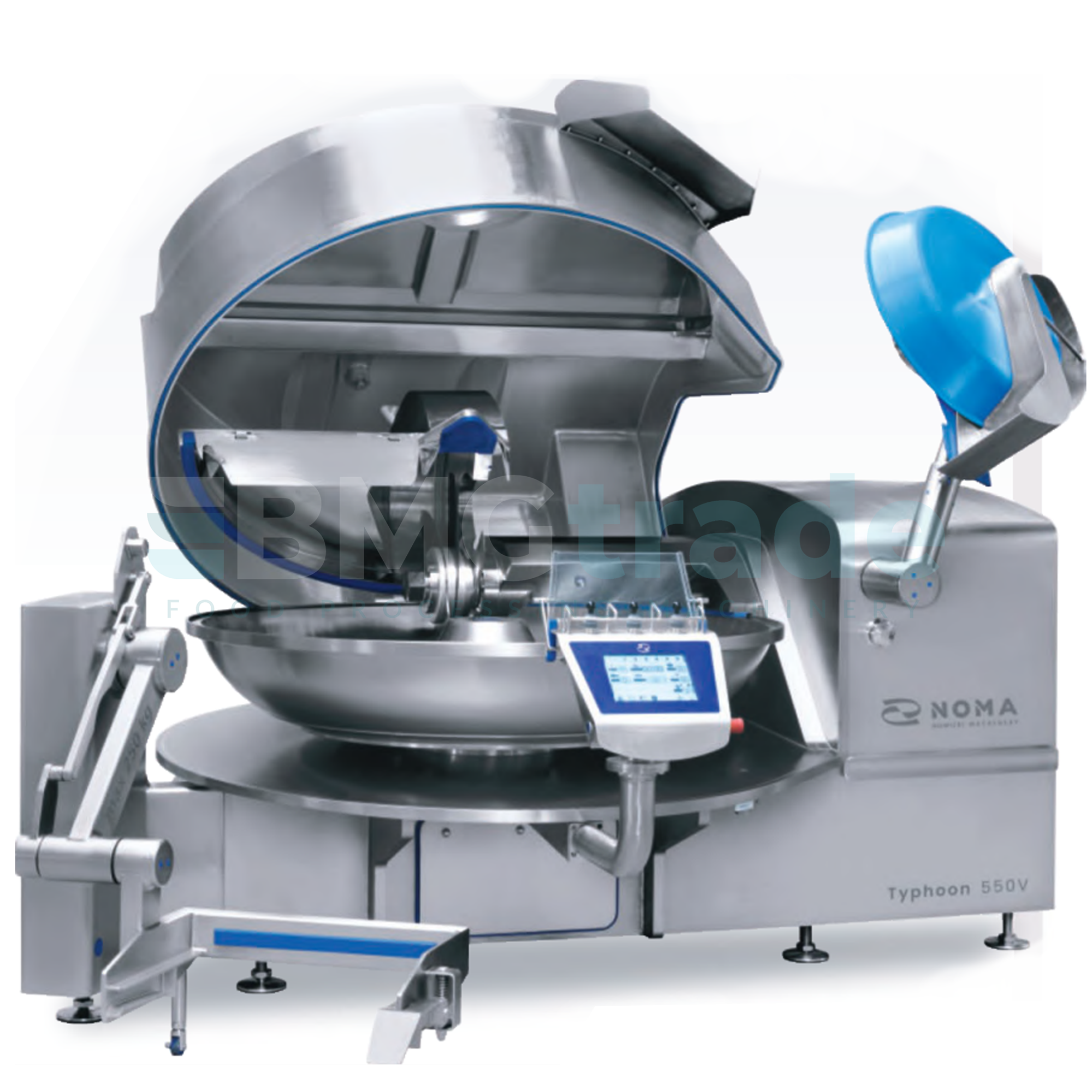

NOMA KN-550 V vacuum cutter Nowicki Machinery
High-speed cutter from 2025*
The NOMA KN-550 V vacuum cutter ensures high quality, efficiency, and repeatability of stuffing production. It is designed for the production of all types of stuffing with varying degrees of fineness and fat emulsions, including those with raw skins.
Wide range of applications for cutters in the food industry:
- Fish processing
- Meat products and meat industry products
- Semi-finished products and vegan and vegetarian food products
- Fruit and vegetable processing
- Baking and confectionery industry
- Convenience food
- Pet food
Technical data:
- Type: KN-550 V
- Bowl capacity: 550 dm3
- Year: 2025
- Condition: New, unused
- Number of knives: 6 pcs.
- Weight: 9500 kg
Knife shaft speed
- (cutting, adjustable): 100+3800 rpm
- (adjustable): (-100)+(-300) rpm
Dimensions:
- L1 = length with loading: 3450 mm
- B1 = width with loading: 3470 mm
- H1 = height with cover lowered: 2450 mm
- H2 = height with cover raised: 3220 mm
- Control cabinet dimensions – standard: 1200 x 2000 x 600 mm
✅ Advantages of the NOMA KN-550 V High-Speed Vacuum Cutter from Nowicki Machinery, 2025:
RELIABLE CUTTING SYSTEM
- optimal cutting chamber shape in combination with the shape of the knives
- use of “air cutting” technology
- use of the best cutting tools
MISA
- appropriate profiling of the bowl shape
- ideal for homogenized products
- stuffing mixing system through reverse rotation
HYGIENIC DESIGN
- easy access to every part of the machine during cleaning
- all food contact areas (food zones) polished
- all flat surfaces made at a 3-degree angle for better water drainage
- all covers can be opened for cleaning
- bowl positioning with drain hole
LOADING
- efficient loading of 200 and 300 l stuffing trolleys
- protection against stuffing trolley falling out

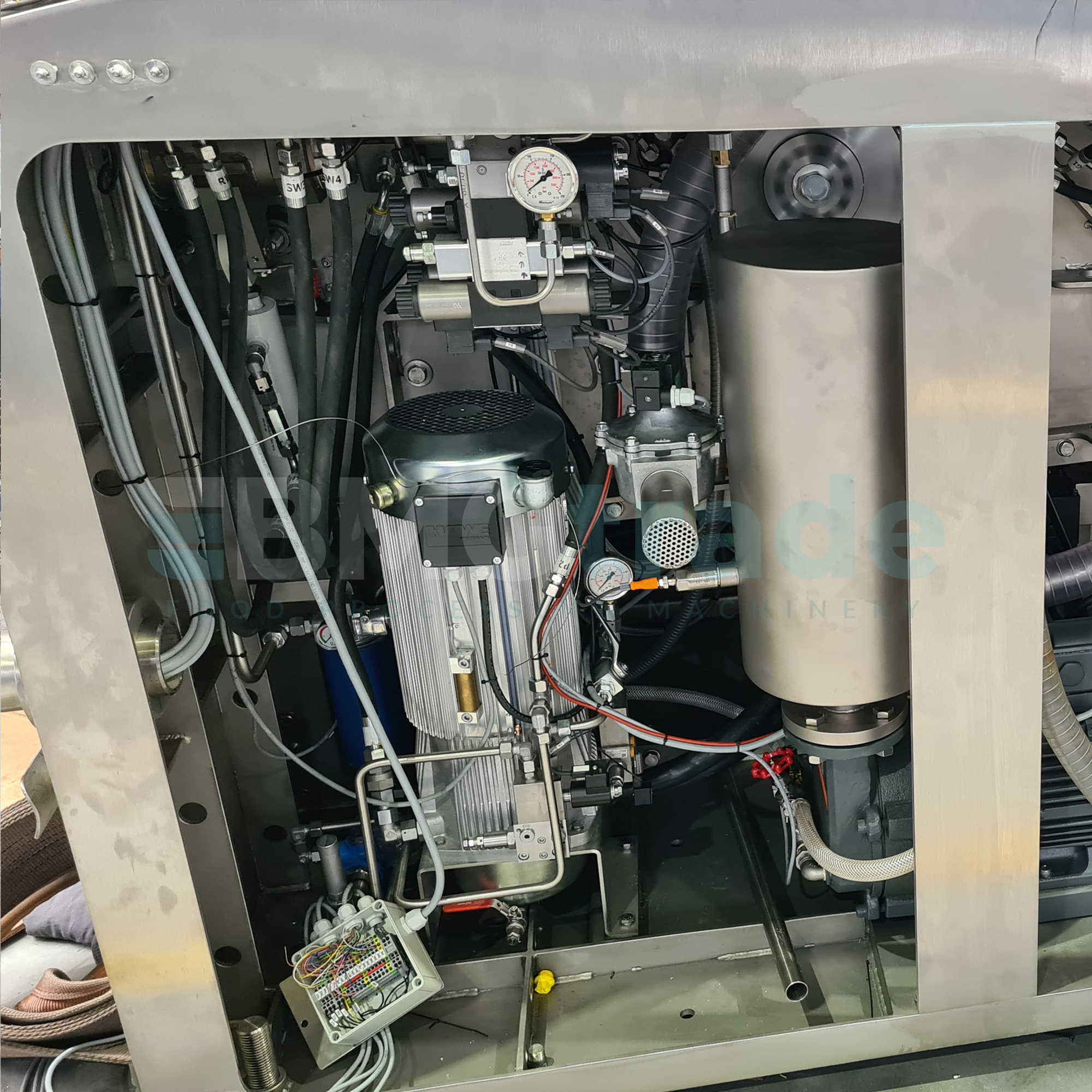

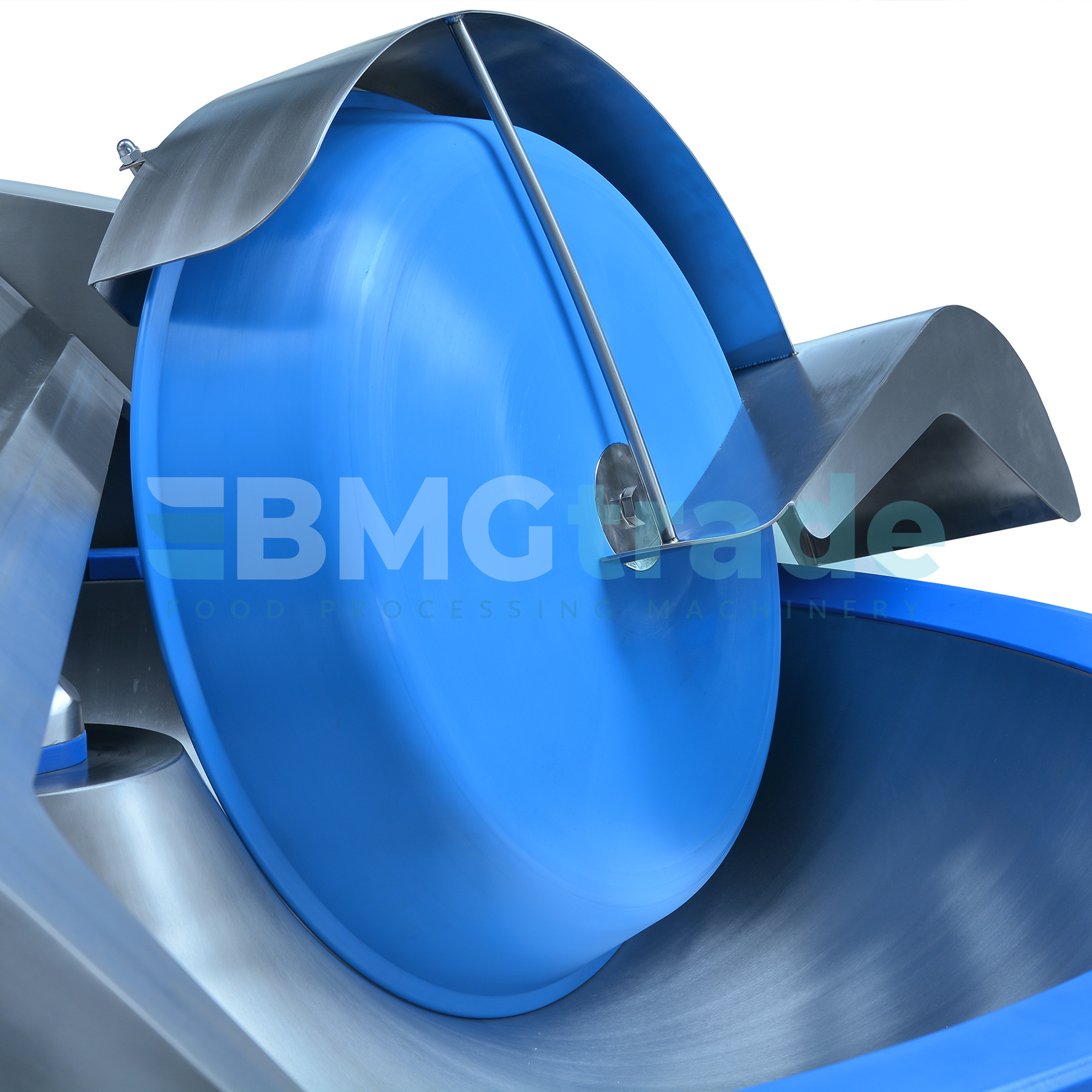

EFFICIENT HYDRAULIC UNLOADING
- unloading of both dry and liquid stuffing
- adjustable speed of the unloading plate
- possibility of using a stepped plate
MICROPROCESSOR CONTROL SYSTEM
- based on intuitive TOUCH PANEL control
- fast operation of covers and loading via joystick
- control of all operating parameters
- automation of operation through the use of up to 40 technological programs
- smooth adjustment of knife and bowl speed

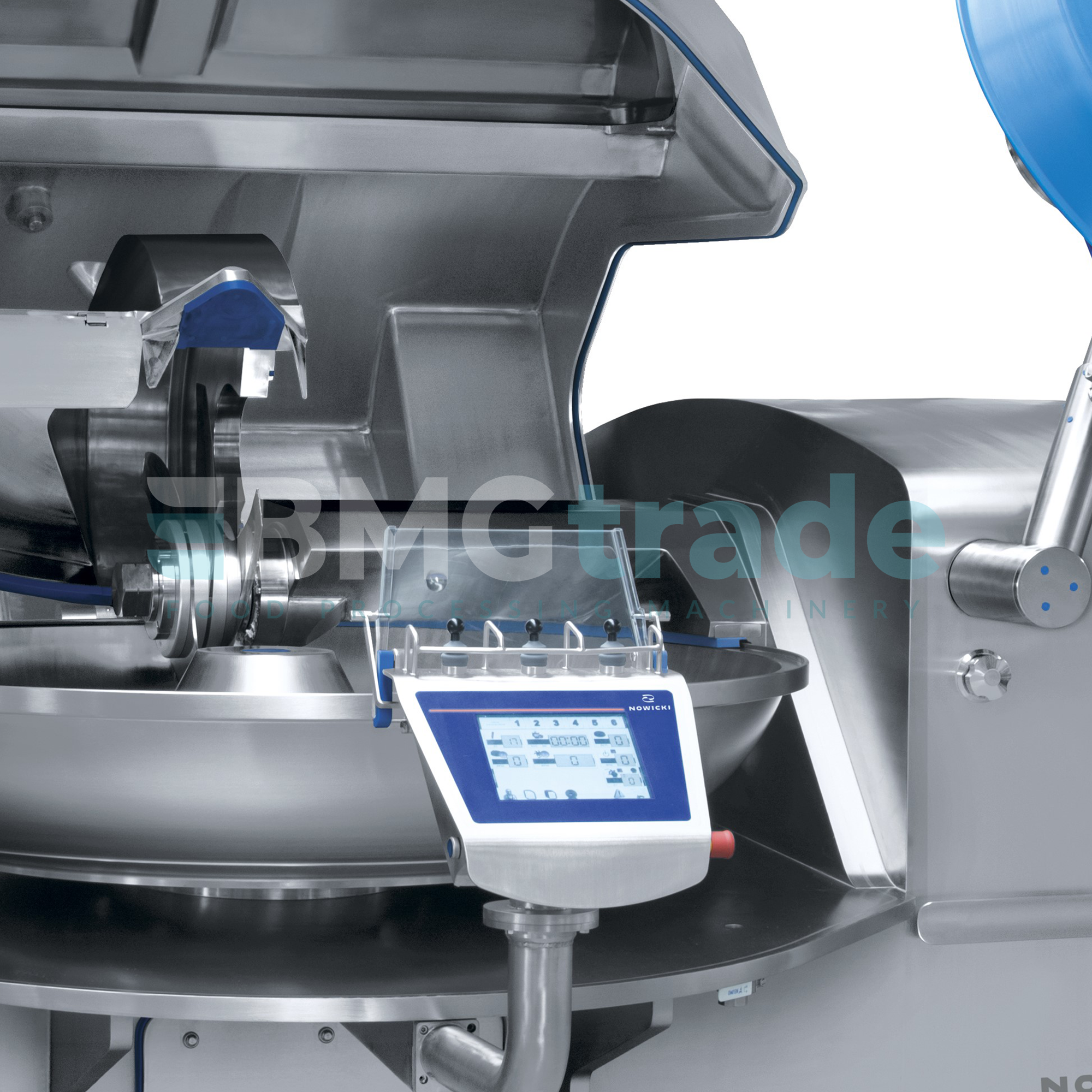

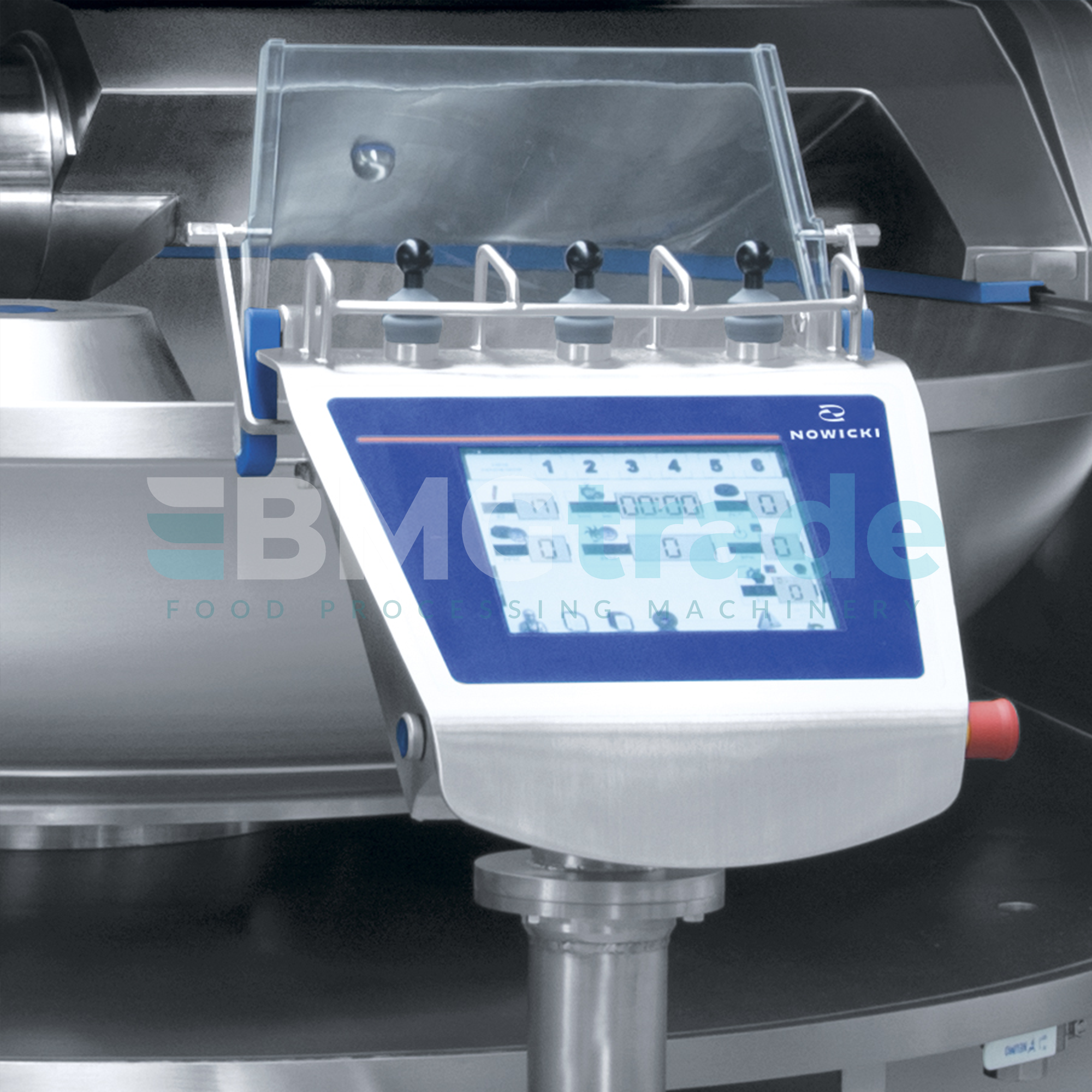

Touch screen operator panel as standard:
- intuitive and easy-to-use touch panel
- 40 technological programs can be programmed, each program can contain 20 steps
- quick program correction, copying of programs or steps
- control and adjustment of knife shaft speed, bowl speed, stuffing temperature
- analysis of cutter operating conditions and emergency status signaling
- program summary screen display: cutting time, bowl speed, operator, batch number, mince temperature
- choice of cutting end options – by time, by number of bowl rotations or by mince temperature
- control of lids, mince ejector and loading via joysticks
- control of bowl and knife shaft speed using joysticks
- service menu for monitoring all frequency converter parameters during operation
- ensuring safe operation of the cutter
*This offer is for customers in African countries.
📩 Ask for an offer: info@bmgtrade.com
