Product description

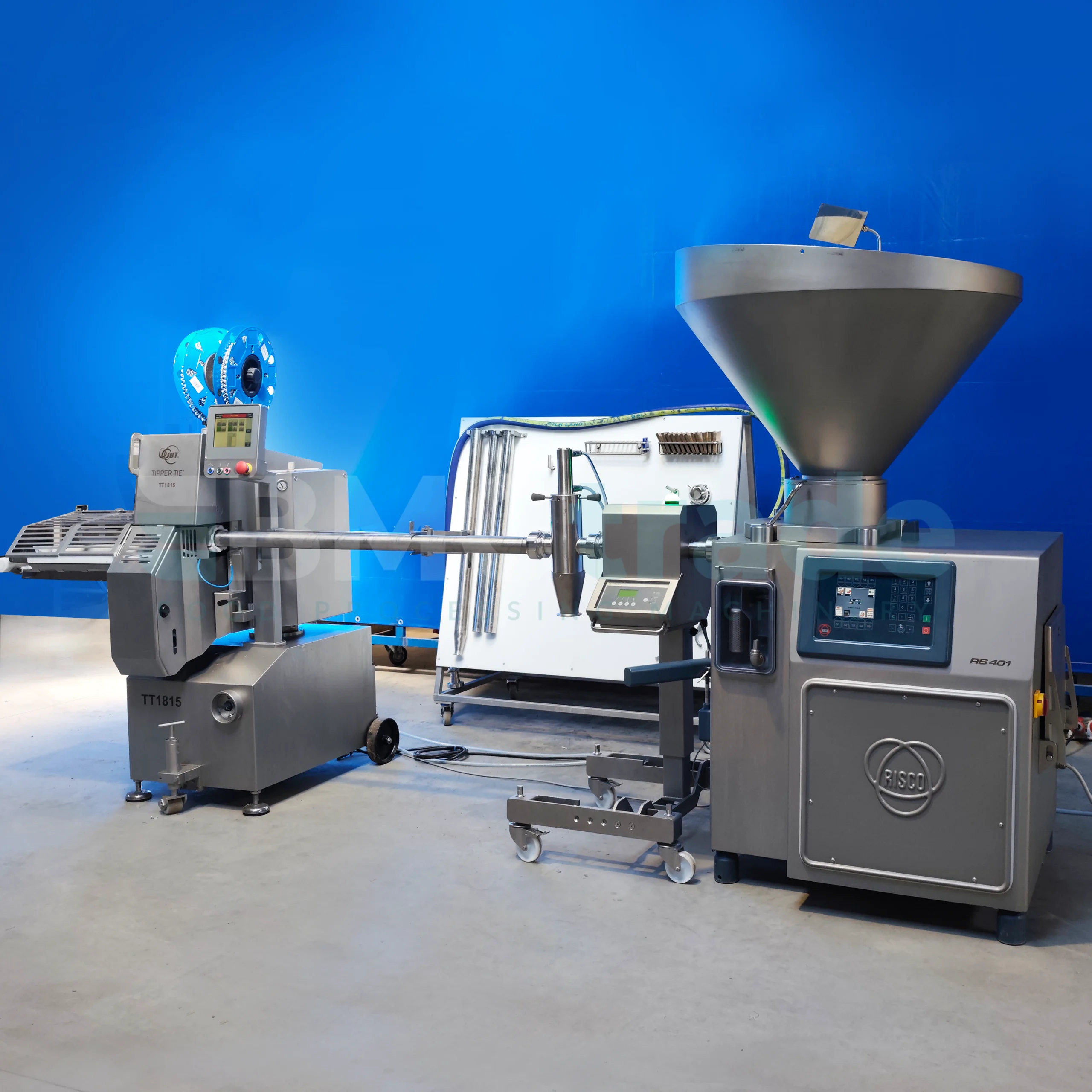

 Risco RS401 Sesotec Detector and JBT Tipper Tie TT1815

Complete machinery line

The line consists of:

  • Risco RS401 Vacuum Filler
  • Sesotec metal detector with contaminated batch ejection
  • JBT Tipper Tie TT1815 automatic double-row clipper

This highly efficient and versatile line is designed for use in the food industry, in particular for filling and portioning sausages, hamburgers, meatballs, pâtés and other similar products.

The RS4001 is equipped with a powerful vacuum system that ensures consistent product filling with minimal air content, which is essential for maintaining product quality, especially for sausages and similar products. The machine is equipped with advanced portioning technology that allows for precise portion size control. Designed for very cold meats and heavy/high-viscosity products.

Risco RS401

  • Hopper capacity: 260 l
  • Power: 8 kW
  • Portioning range: 5 grams – 32 kg
  • Capacity: up to 700 portions/min – at 25 g
  • Dimensions: L: 1950 x W: 1200 x H: 1950mm
  • Weight: 970kg
  • Year of manufacture: 2019
  • Made in Italy

Sesotec LIQUISCAN-VF+ detector

  • Nom. Voltage: 100-240 VAC,N,PE
  • Nom. Current: 0.50-0.25 A
  • Frequency: 50/60 Hz
  • Nom. Pressure: 6-8 bar
  • Interrupt. Rating: 16 A
  • Weight: 125 kg
  • Year of manufacture: 2019
  • Made in Germany

JBT Tipper Tie TT1815 Clipper

  • Power: 5.5 kW
  • Air consumption: 5.1 l/cycle
  • Compressed air: 6-7 bar
  • Calibre range: 35-140 mm
  • Phase: 50 Hz / 60 Hz
  • IN 15 A Imax SC 25 A
  • Output: up to 130 portions/min
  • Overall dimensions: L: 1300 x W: 1610 x H: 2020 mm
  • Weight: 500 kg
  • Year of manufacture: 2019
  • Made in Germany

Contact with us via form or e-mail: info@bmgtrade.com

Line Vacuum Filler Risco RS401 Sesotec Detector and clipper JBT Tipper Tie TT1815

Risco RS401
Year of manufacture
2019
Hopper capacity
260 l
Power
8 kW
Capacity
up to 700 portions/min – at 25 g
Weight
970kg
Dimensions
L: 1950 x W: 1200 x H: 1950mm
Sesotec LIQUISCAN-VF+ detector
Year of manufacture
2019
Nom. Voltage
100-240 VAC,N,PE
Nom. Current
0.50-0.25 A
Frequency
50/60 Hz
Nom. Pressure
6-8 bar
Interrupt. Rating
16 A
Weight
2019
JBT Tipper Tie TT1815 Clipper
Year of manufacture
2019
Power
5.5 kW
Air consumption
5.1 l/cycle
Compressed air
6-7 bar
Calibre range
35-140 mm
Phase
50 Hz / 60 Hz
Output
up to 130 portions/min
Weight
500 kg
Dimensions
L: 1300 x W: 1610 x H: 2020 mm
